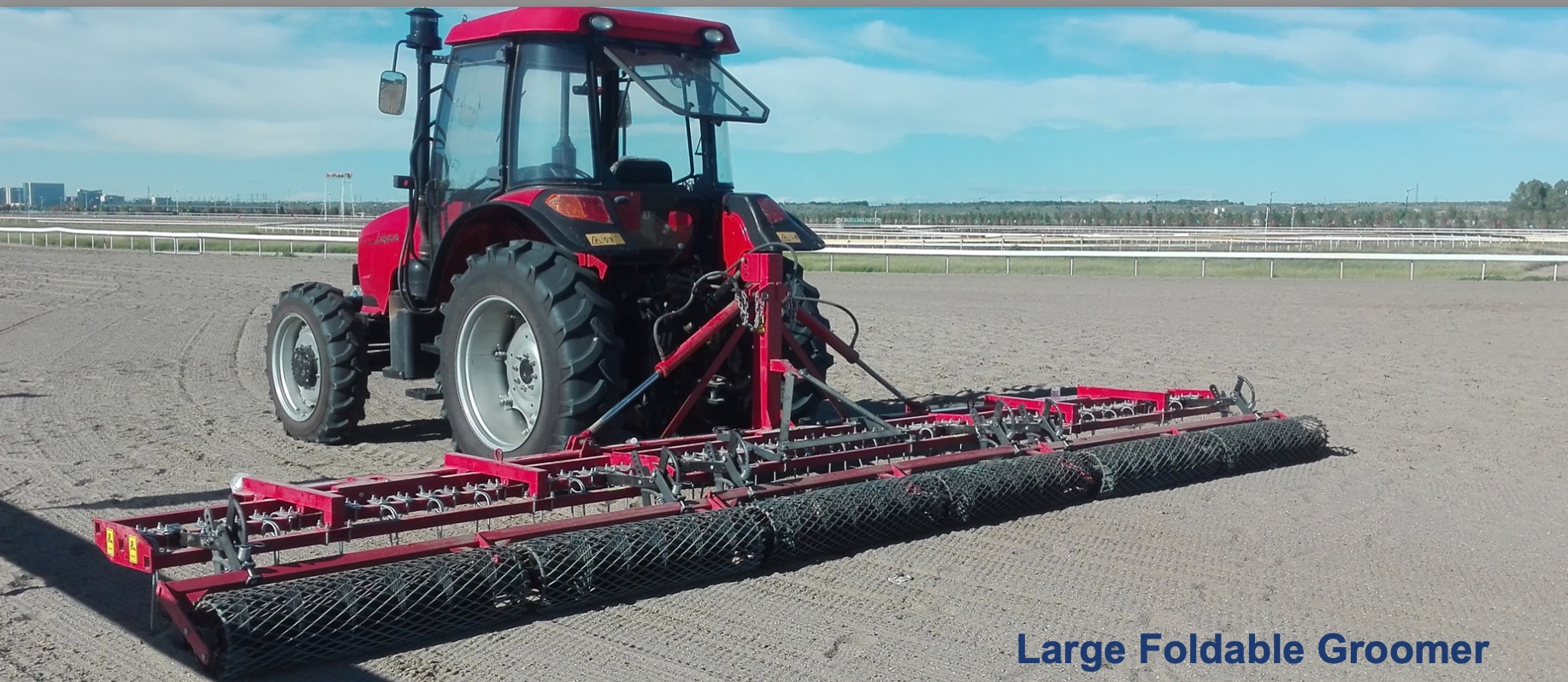

Large Professional Leveller for Racing Field
Specifically designed for equestrian arenas and racetracks, this leveler features a hydraulic folding and lifting system with electric controls for safe and efficient operation.
When folded, it measures 8.2 ft × 9.8 ft (2.5 m × 3 m), and expands to 24.6 ft × 4.9 ft (7.5 m × 1.5 m), offering wide coverage and improved working speed.
It quickly loosens compacted surfaces, fills hoof prints, and levels sand for a firm, even footing. Ideal for use between events, multiple units can work together to minimize downtime.
The unit enters and exits without altering fences, folds for compact storage, and is easy to maintain—making it a practical choice for professional venue management.
Details
Dimensions
Optional Accessories
Application

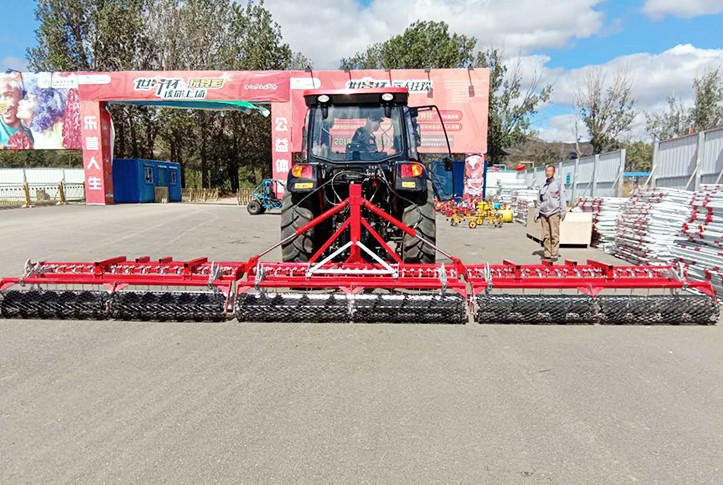

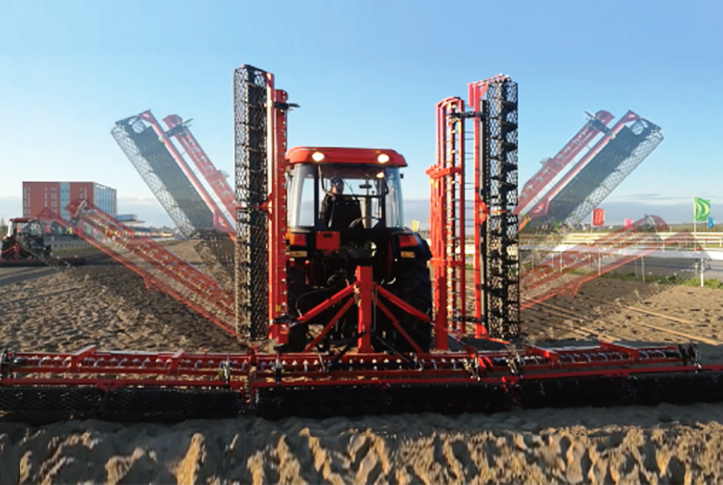

The Large-Scale Arena and Racetrack Leveler is a professional ground-leveling machine specifically designed for wide-areavenues such as equestrian arenas and horse racetracks. It features a wave-press hydraulic folding and lifting system, with alloperations conveniently controlled from the operator’s cabin via electric switches, ensuring safety, simplicity, and efficiency.

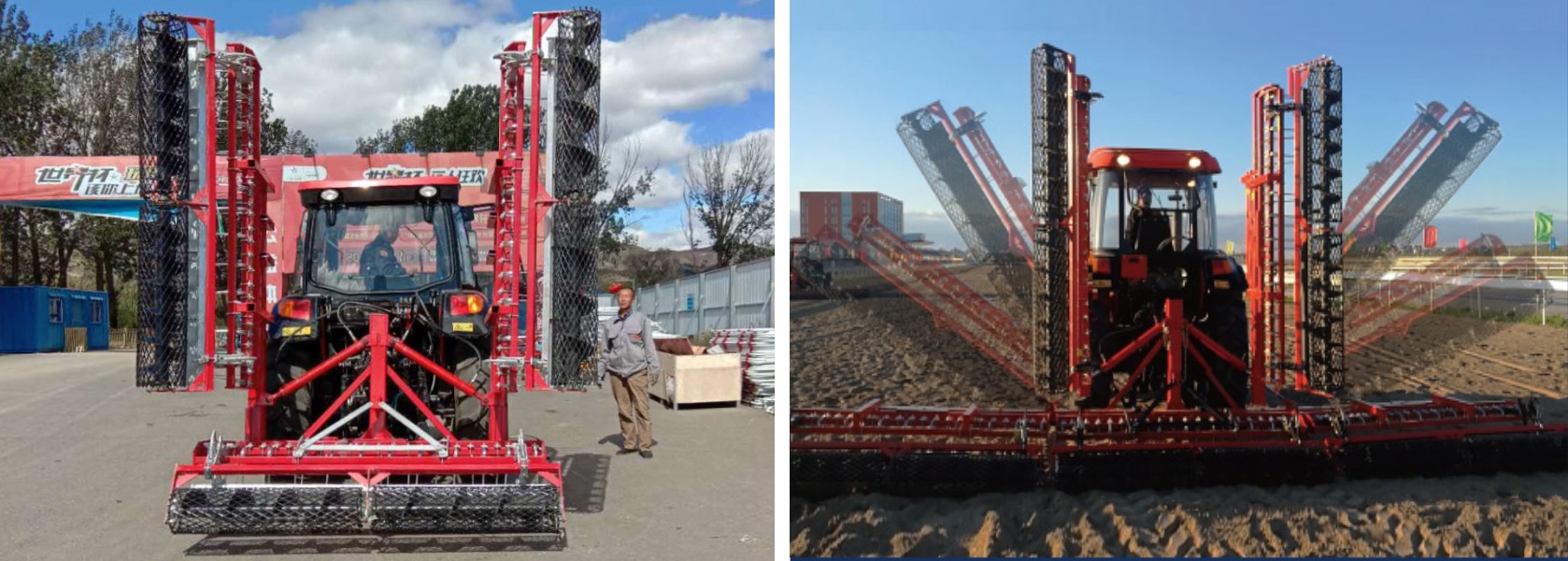

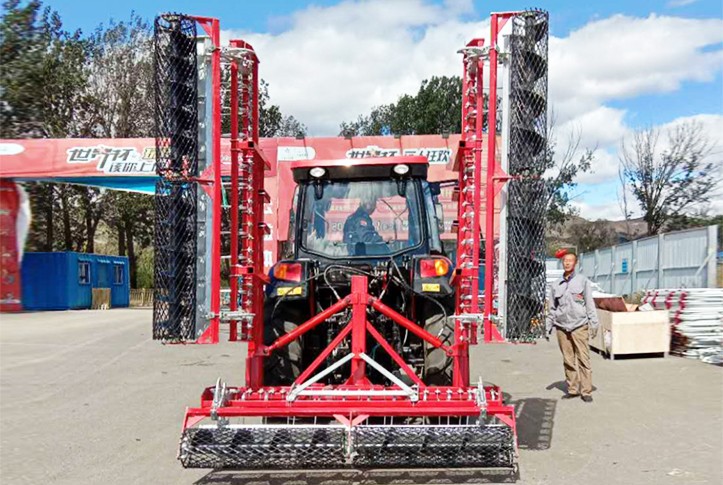

When folded, the leveler measures approximately 8.2 feet wide and 9.8 feet high. Once deployed, it expands to a workingwidth of 24.6 feet and a height of 4.9 feet, offering extensive ground coverage and significantly improving operational speed.

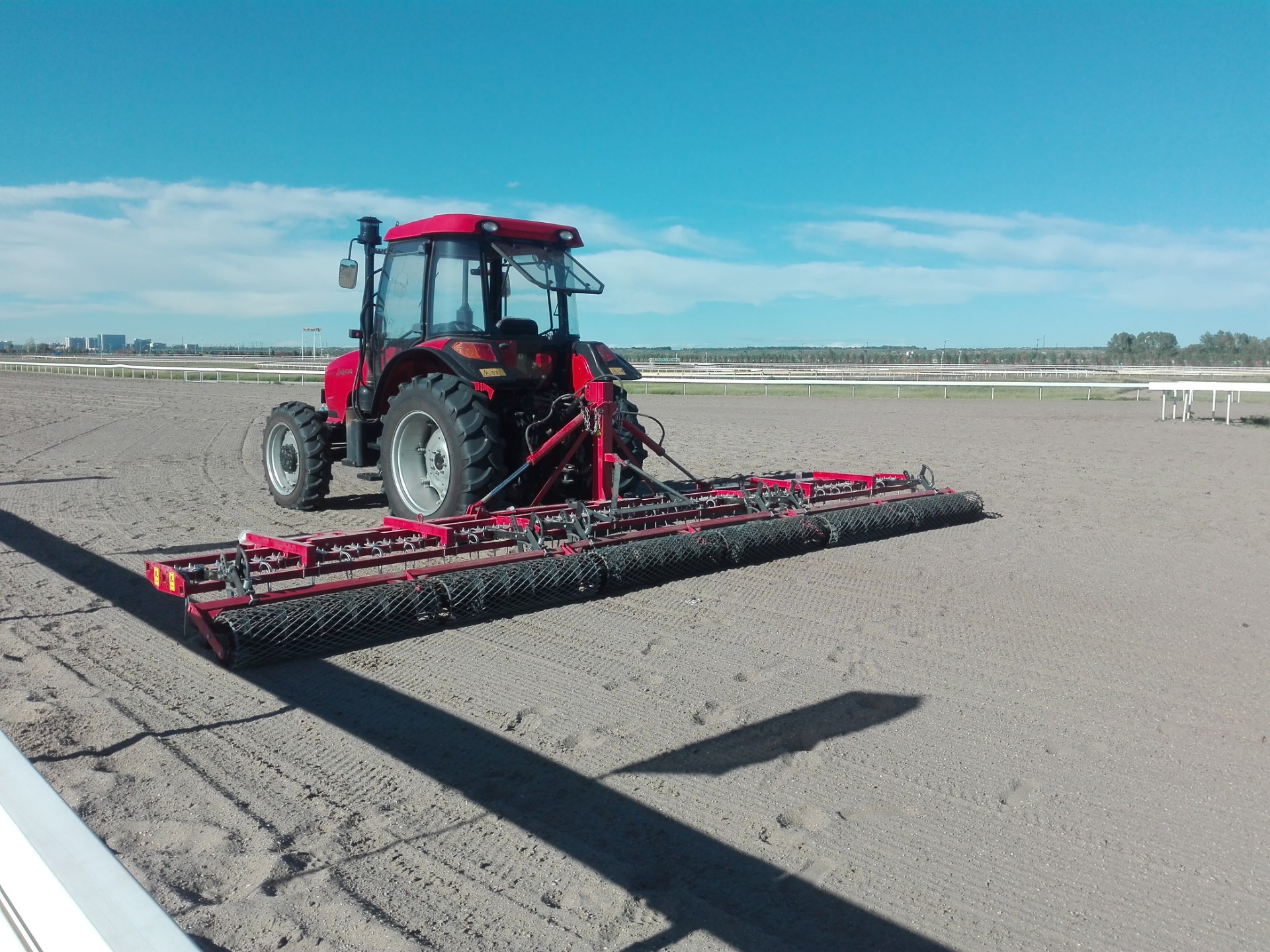

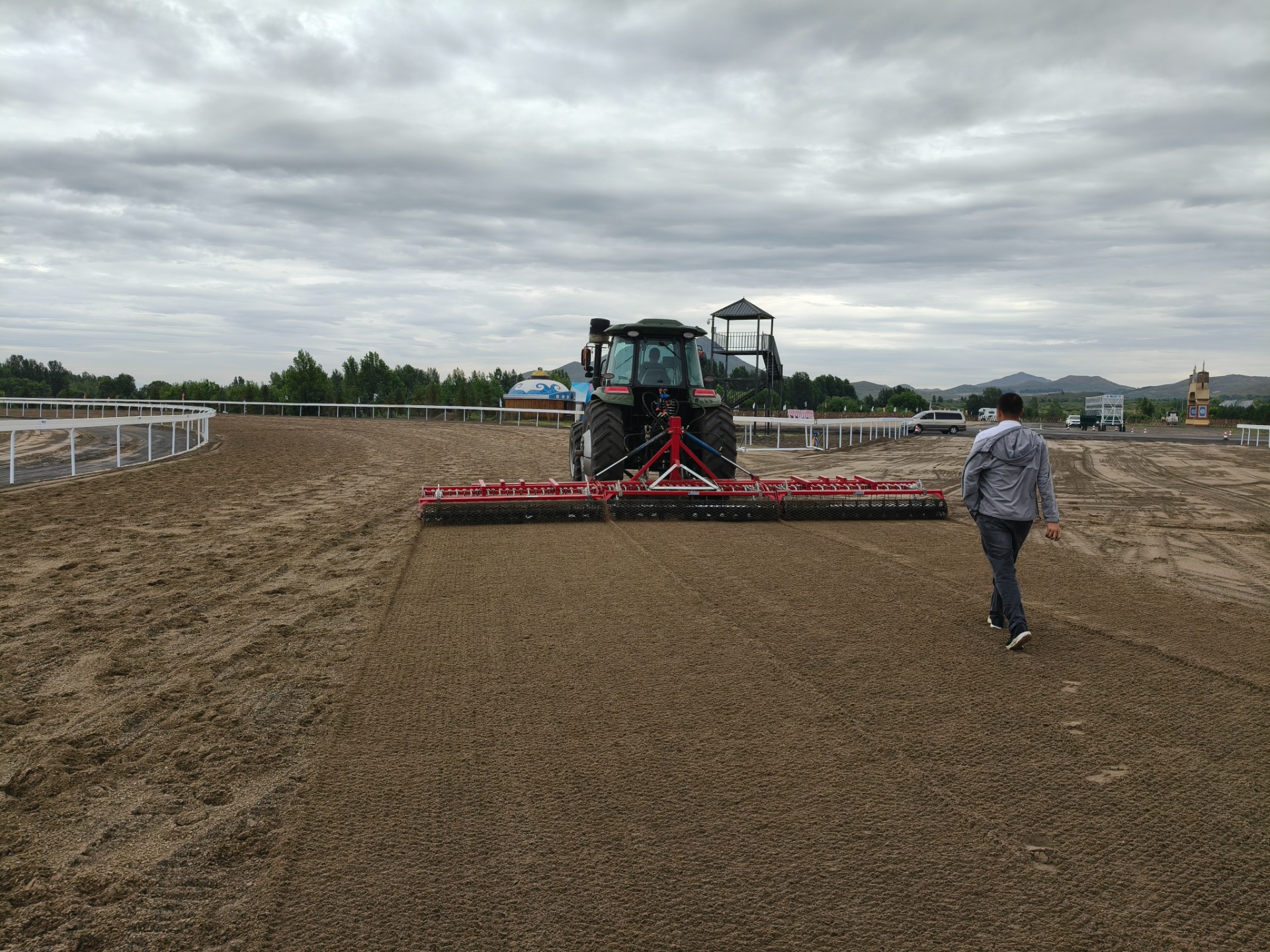

This heavy-duty leveler is engineered to quickly break up compacted surface layers, fill hoof prints, and even out sand layers by scraping and compacting the surface to achieve optimal, standardized firmness and consistency. In large-scale venues, 2 to 3 levelers can be used simultaneously to efficiently restore the track or arena surface between competition intervals, dramatically boosting efficiency and reducing downtime compared to traditional methods or smaller equipment.

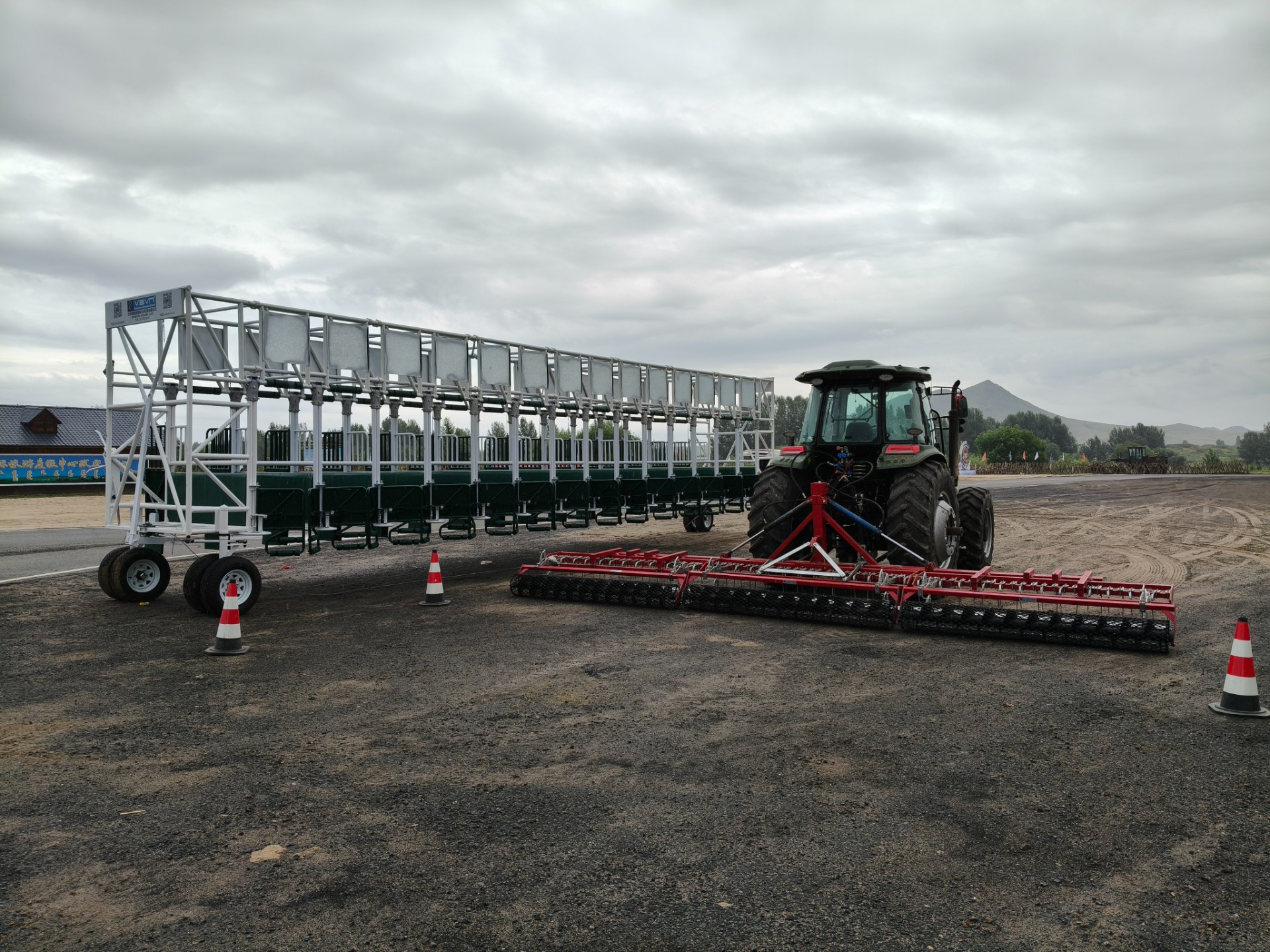

The leveler is designed for rapid entry and exit without the need to modify arena fences or gates. When folded, it occupies minimal storage space and is easy to maintain and service, making it a highly practical and cost-effective solution for professional arena management.
 | |||
 |

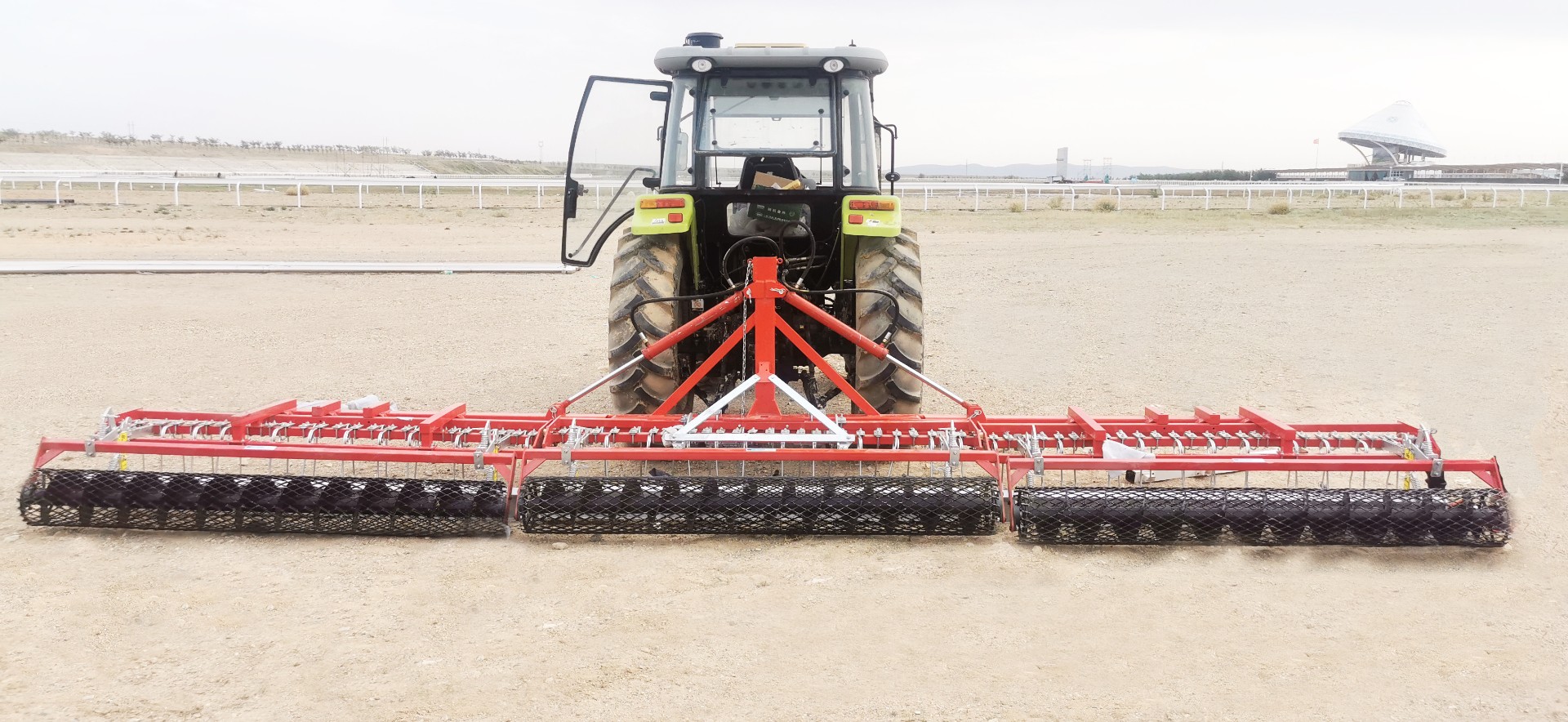

Large-Scale Arena and Racetrack Leveler
This arena leveler measures 2.5 meters (8.2 ft) in width and 1.3 meters (4.3 ft) in height. Designed for use with medium-sized tractors, it comes equipped with a hydraulic linkage kit compatible with various tractor models for easy attachment.
Key Features:
Equipped with 72 spring tines in the center for loosening compacted ground.
three height-adjustable leveling blade ensures a smooth and even surface.

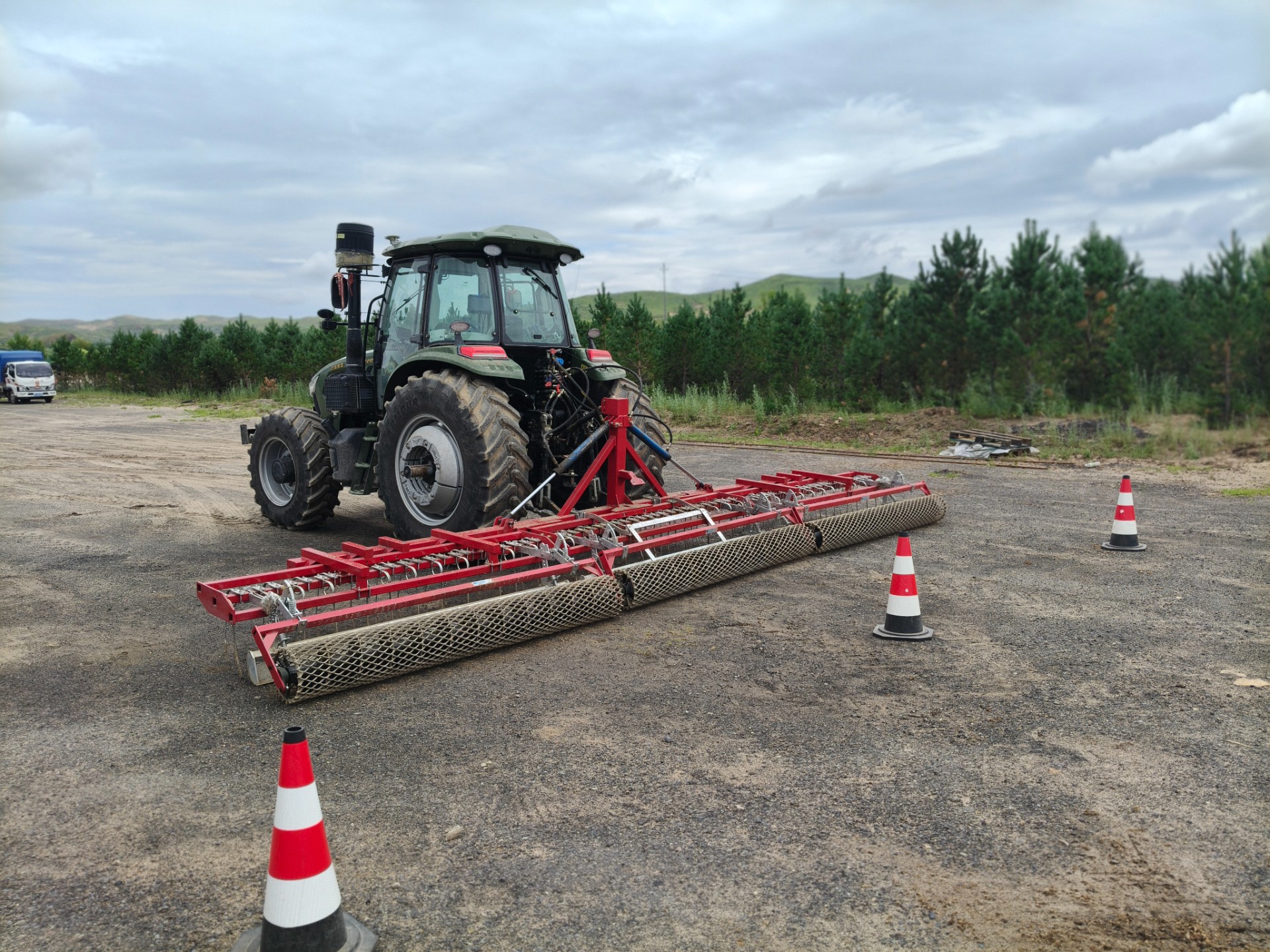

Rear section includes a dual-roller compactor with four bearings; height-adjustable. The rollers have spiral blades inside and diamond-patterned steel mesh on the outside for enhanced compaction and durability.
Two resin side guide wheels (one on each side) help maintain direction and allow for quick course correction.
Stable dual-wheel towing system ensures smooth operation over uneven terrain.
The entire steel structure is hot-dip galvanized for corrosion resistance and finished with electrostatic powder coating for long-term durability.
Each unit comes with 4 spare spring tines.
Dimensions： | 8.2 ft wide by 9.8 ft high (2.5 m × 3 m), and expands to 24.6 ft wide by 4.9 ft high (7.5 m × 1.5 m) when fully deployed. |
Frame Composition： |
|
Surface treatment： |
|
Fitiing options： |
|
Weight： |
Flexible Accessory Configuration Guide
To meet diverse customer needs, we offer a wide range of functional and decorative accessories compatible with all our products. Some accessories require structural integration and must be specified at the time of order. Others can be ordered and installed at any time, allowing for flexible upgrades and customized enhancements.
S-shaped spring tines
T-shaped plow blades
Side guide wheel aligner
Left and right obstacle removers
Four spiral rollers
Water Spray Dust Suppression System
| ||||
 |  |  | ||
| S-shaped spring tines | T-shaped plow blades | Side guide wheel aligner | ||
 |  |  | ||
| Left and right obstacle removers | four spiralrollers | Tine Hooks | ||
