Barn Window 1

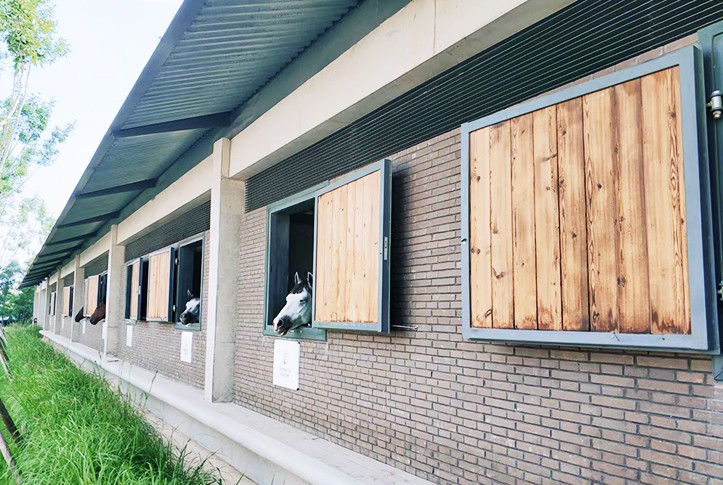

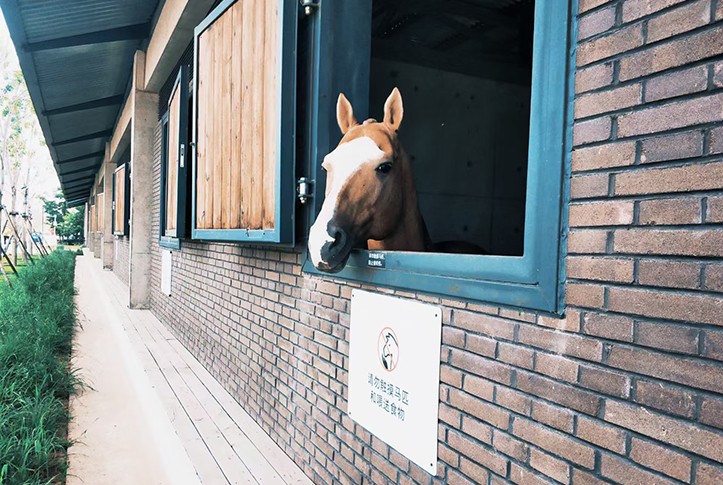

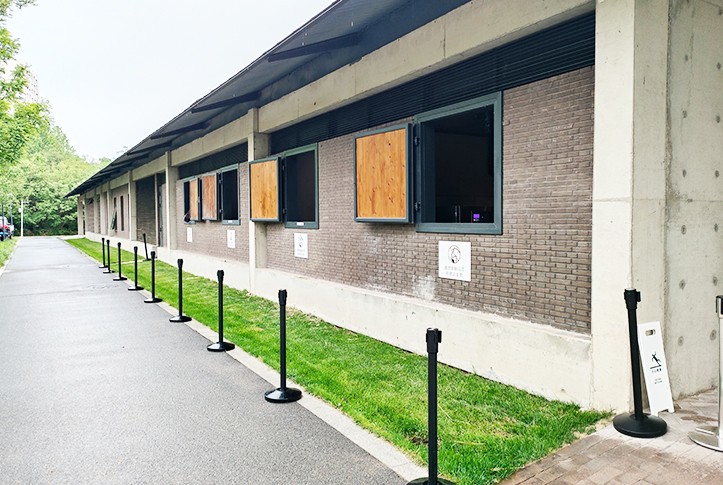

Fresh air and natural sunlight are essential for the health and well-being of horses. That’s why a modern stable window must offer both high functionality and enhanced safety. Our windows are equipped with durable locks and double-layer insulated tempered glass with rubber seals — ensuring excellent thermal insulation and maximum safety for your horses.

We offer a wide variety of window styles and sizes to choose from. Optional features include protective grilles and side-opening ventilation systems to improve airflow.

All steel components are galvanized for corrosion resistance, significantly extending the lifespan of the windows. The exterior surfaces are finished with electrostatic powder coating, which not only enhances durability but also allows for seamless integration with your building’s facade.

Details Dimensions Optional Accessories Application

1. Materials for Barn Windows

Wood: Traditional and visually appealing; all wood is treated for moisture resistance and durability.
Bamboo Composite Panels: Strong, long-lasting, and naturally resistant to rot—ideal for barn environments.
WPC (Wood-Plastic Composite): Waterproof, anti-corrosive, and aesthetically pleasing.
Glass Panels: All doors and windows use standard 1/4" + 1/4" + 1/4" (6mm + 6mm + 6mm) insulated tempered glass for enhanced safety and thermal performance.
Frame Tubing: Frames are welded from 2"×2" (50×50 mm) galvanized Q235 steel; main supports use 2.36"×2.36" (60×60 mm) L-shaped steel angles, and exterior
cladding is made from 0.08" (2 mm) bent steel plates. All surfaces are powder-coated for superior durability and safety.

2. Sizes

Standard sizes: 1×1m (39.4"×39.4"), 1×1.2m (39.4"×47.2"), and 1×1.5m (39.4"×59"). Custom sizes and shapes available upon request.

3. Window Types

All windows open up to 180° and come with secure locking mechanisms to prevent unauthorized access. Optional side-opening designs are also available. Shutter
materials include wood panels, bamboo panels, or insulated tempered glass. Glass windows can be equipped with metal safety mesh for extra protection.

4. Safety Features

Locking Mechanism: All windows are equipped with secure lock systems to prevent escapes and unauthorized entry.
Rounded Edges: Smooth, rounded corners reduce the risk of injury to horses or handlers.

5. Sealing Performance

All windows feature metal-edged seals to prevent water ingress and minimize heat loss, ensuring year-round comfort for your horses.

6. Aesthetic Design

Available in square, rectangular, or arched shapes. We specialize in arched-top designs with glass on the upper section and wood on the lower. Can't find yourdesired style? We offer full customization to match your barn's architectural aesthetics while maintaining functionality.

7. Budget Consideration

We help you strike the best balance between cost and quality. Investing in higher-grade materials ensures long-term savings and improved performance.

8. Easy Installation

Our windows are pre-assembled and come with matching bolts. Installation options include internal mounting, external mounting, or welding, depending on
your barn structure. Frames come pre-drilled for quick and secure installation.
