Ground-Mounted 8-Horse Horse Walker

The VSVN classic ground-mounted horse walker is widely used in training centers, equestrian clubs, and competition venues. Built with a robust structure and reliable drive system, it supports 3 to 8 horses exercising simultaneously.

Equipped with a PLC smart controller, it offers multiple training modes, directional switching, and stepless speed adjustment. Powered by German NORD motors and Siemens frequency converters for smooth and energy-efficient operation.

Available in Standard, Advanced, and Premium control configurations. The fully hot-dip galvanized frame ensures corrosion resistance and a service life of up to 50 years—making it a durable, safe, and intelligent training solution.

Details Dimensions Optional Accessories Application

The VSVN Standard Horse Walker is trusted worldwide for its safety, quick installation, easy maintenance, and energy efficiency.
Available in multiple sizes: 30 ft, 43 ft, 49 ft, 59 ft, and 66 ft in diameter (approx. 9 m, 13 m, 15 m, 18 m, and 20 m), supporting configurations for 3, 4, 6, or 8 horses, suitable for various venues and requirements.
The entire structure is made with fully hot-dip galvanized steel, providing over 50 years of corrosion resistance.
The power system offers both single or dual motor drive options, with friction drive or V-belt drive available—ensuring smooth operation and low maintenance.
It comes equipped with German NORD variable-frequency gear motors and SIEMENS VFD control systems, with built-in training programs tailored for all types of performance horses.

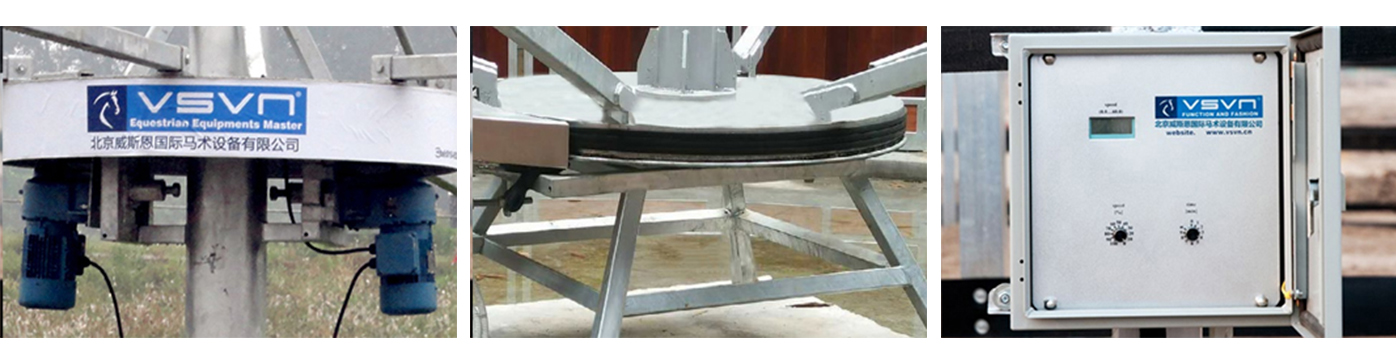

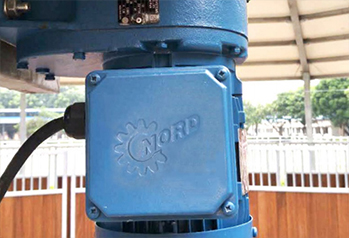

		German NORD Drive Motor The horse walker is powered by a premium German NORD motor, selected by VSVN for its low noise, energy efficiency, and environmentally friendly performance.With every VSVN walker, users enjoy dual warranty protection—one from VSVN and another from NORD—ensuring long-term reliability and peace of mind.

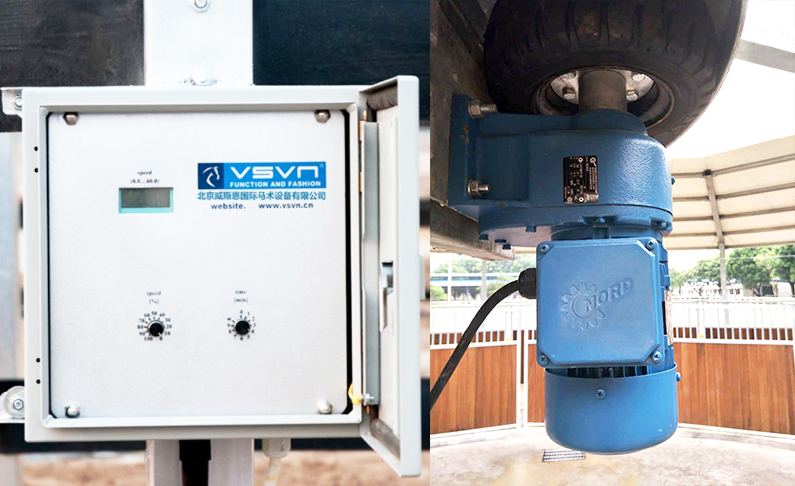

		SIEMENS Variable Frequency Control System The control system features a water-resistant SIEMENS variable frequency drive from Germany, delivering reduced power consumption and flexible speed adjustment anytime, anywhere.Integrated PLC microcomputer programming offers multiple timing options and running modes, making it ideal for training all types of performance horses.

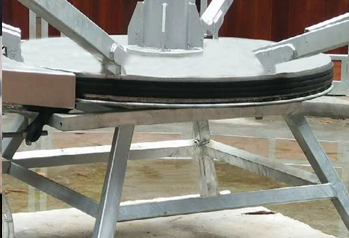

		Safe V-Belt Drive System The VSVN Refined Horse Walker uses a single-motor friction-based V-belt drive system. Compared to traditional mechanical gear drives, this system offers lower noise, higher transmission efficiency, reduced maintenance costs, and greater reliability. The high power conversion efficiency of the V-belt maximizes motor output while improving energy savings and reducing operational expenses.

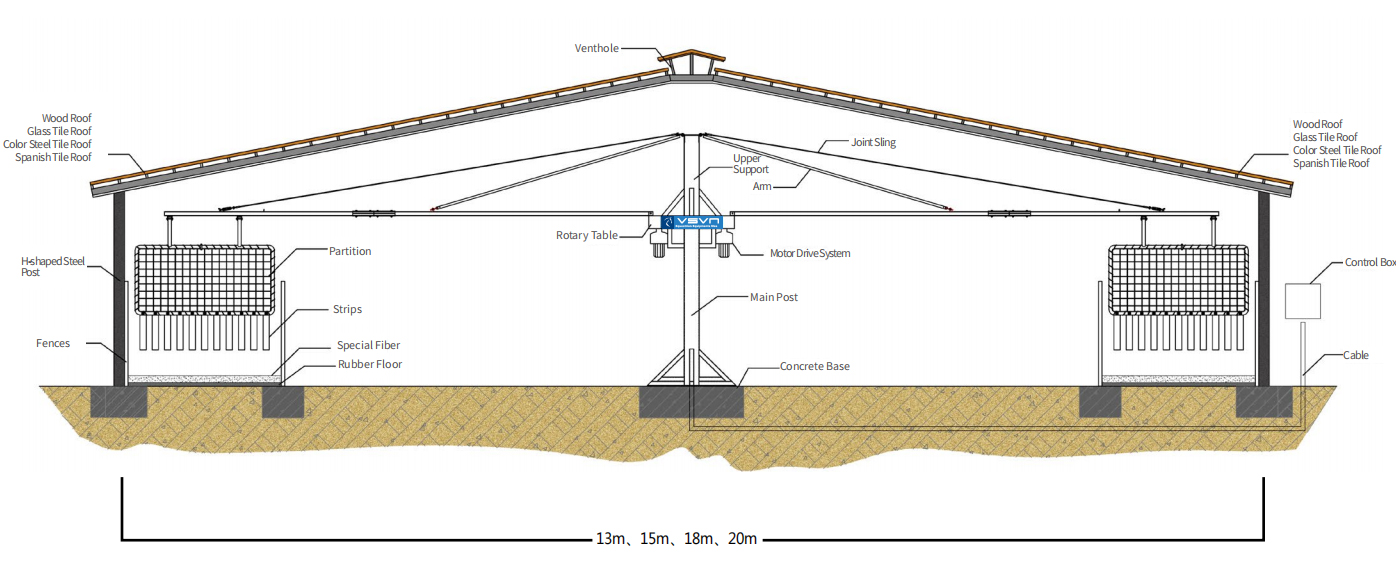

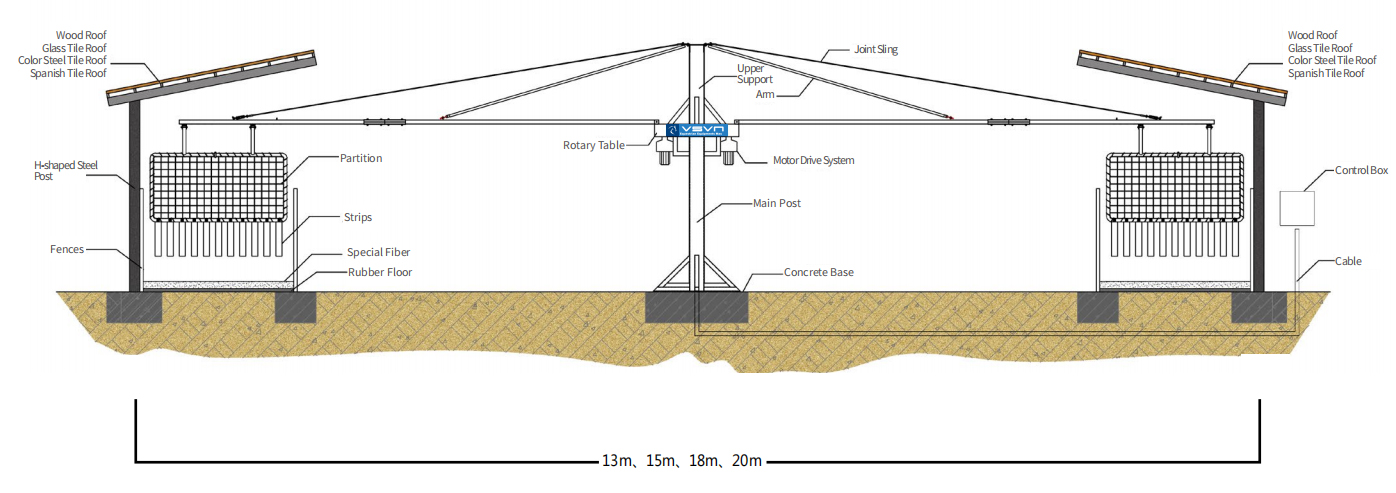

This overhead-motor horse walker has a diameter range of 30–66 ft (approx. 9–20 m) and accommodates 3–8 horses running simultaneously. It utilizes 1–2 German NORD variable-speed gear motors, with Siemens SINAMICS controller enabling automatic forward/reverse direction and stepless speed adjustment.

Key Features:

Equipped with 2 NORD variable frequency gear motors from Germany for smooth and efficient operation
Certified by UL (USA) and CE (Europe) safety standards
Siemens SINAMICS frequency inverter and PLC system offer programmable training modes, time control, and maintenance reminders
Stepless speed adjustment via dial, with automatic direction change, start/stop control, and main power switch
Uses friction drive system with infinitely variable speed from 0–16 mph (0–25 km/h)
Operating voltage: Single-phase AC 200–250V, ±10%, 50Hz/60Hz

Diameter	30 ft（9m）	43 ft（13m）	50 ft（15m）	60 ft（18m）		66 ft（20m）
Horse Capacity	3	4	4-6	6	8	6	8
Motor Brand：（Germany NORD） Power：0.75Kw/unit Voltage：220V (Single-phase)	1 unit	1 unit	2 unit	2 unit	2 unit	2 unit	2 unit
Control System:Siemens Standard Inverter (Standard for all models)	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models
Control System Siemens Touchscreen Advanced Controller (Optional)	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models
Sprinkler Dust Control System	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models
Low-Voltage Branding System	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models

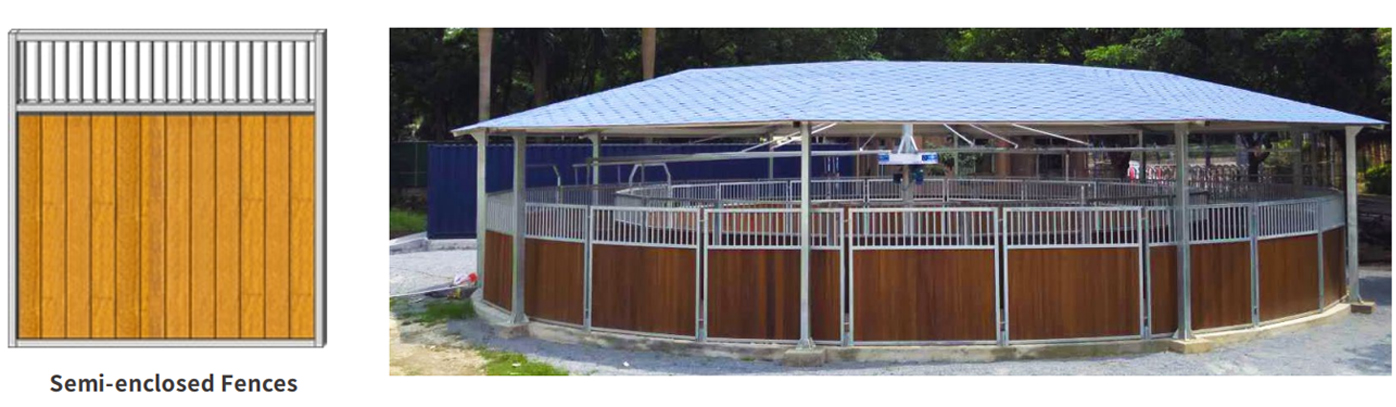

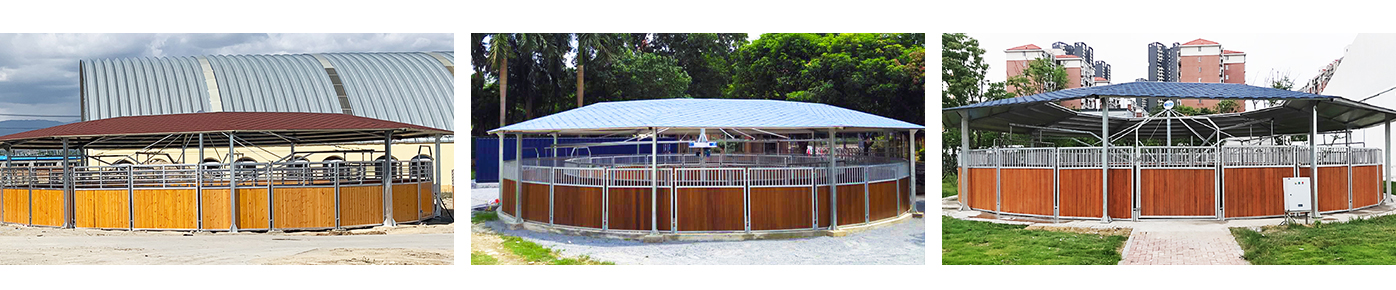

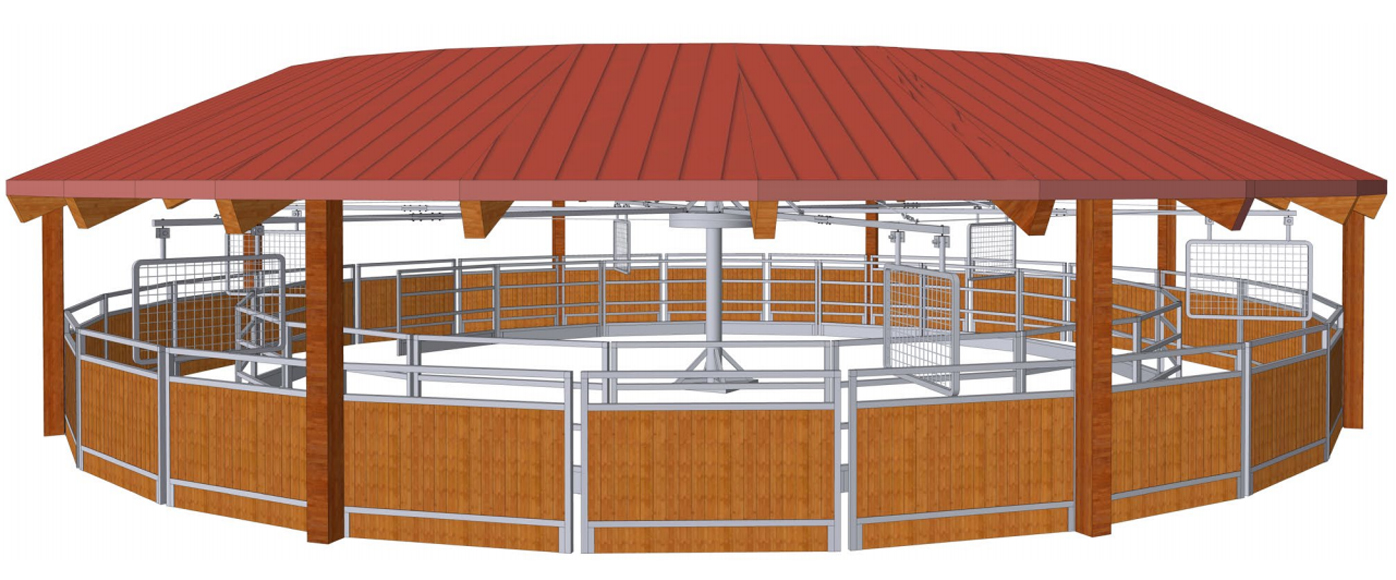

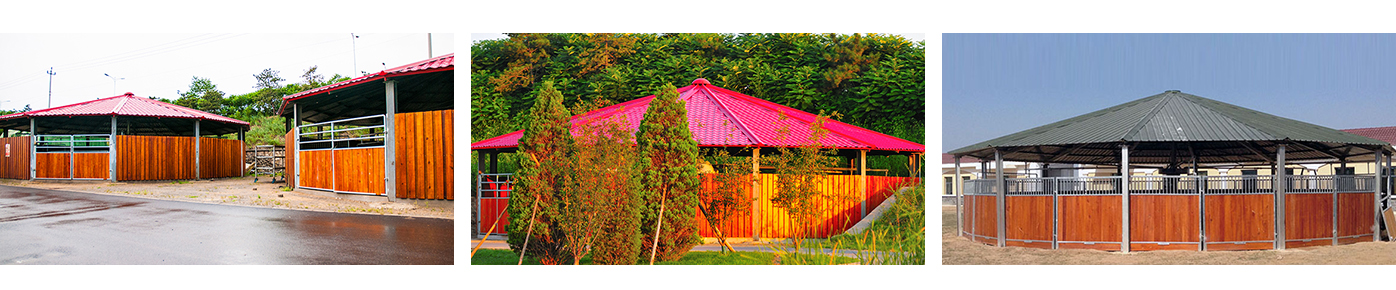

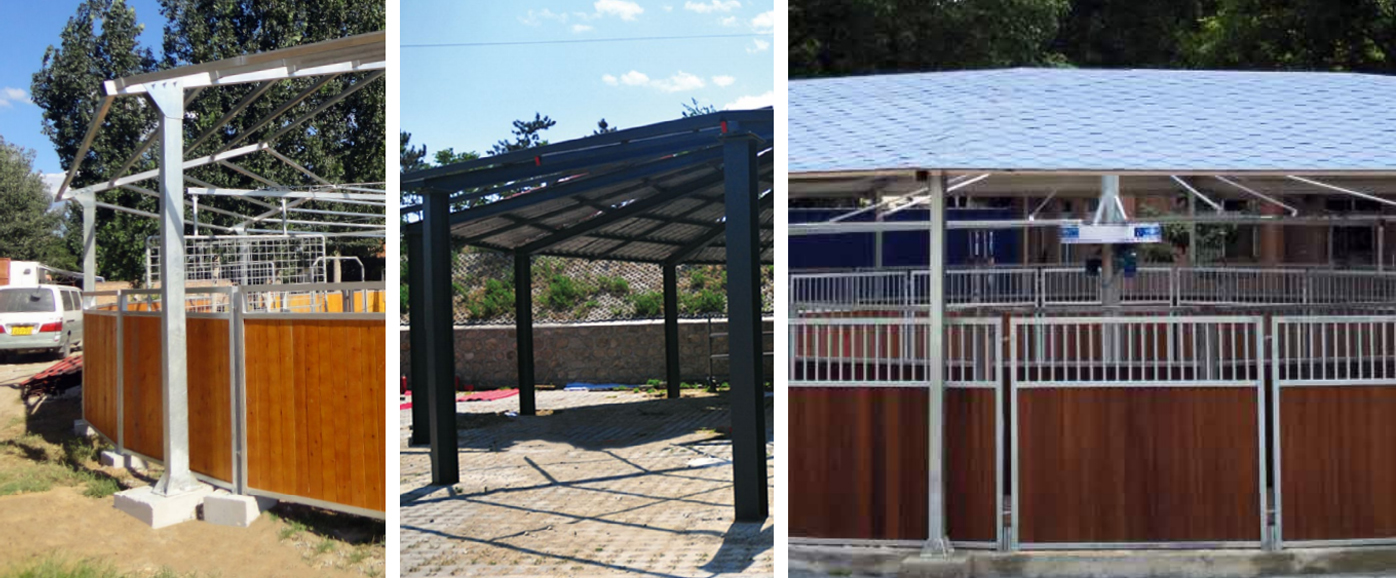

Semi-Enclosed Roof (Optional)	Side height: 3m Ridge height: 3.5 Structure: Metal roof panels or waterproof fiberglass (various colors) Posts: Welded from 5.9 in × 3.9 in (150 mm × 100 mm) Q235 steel tubes or H-beams, with anti-corrosion coating and optional hot-dip galvanization for enhanced durability.

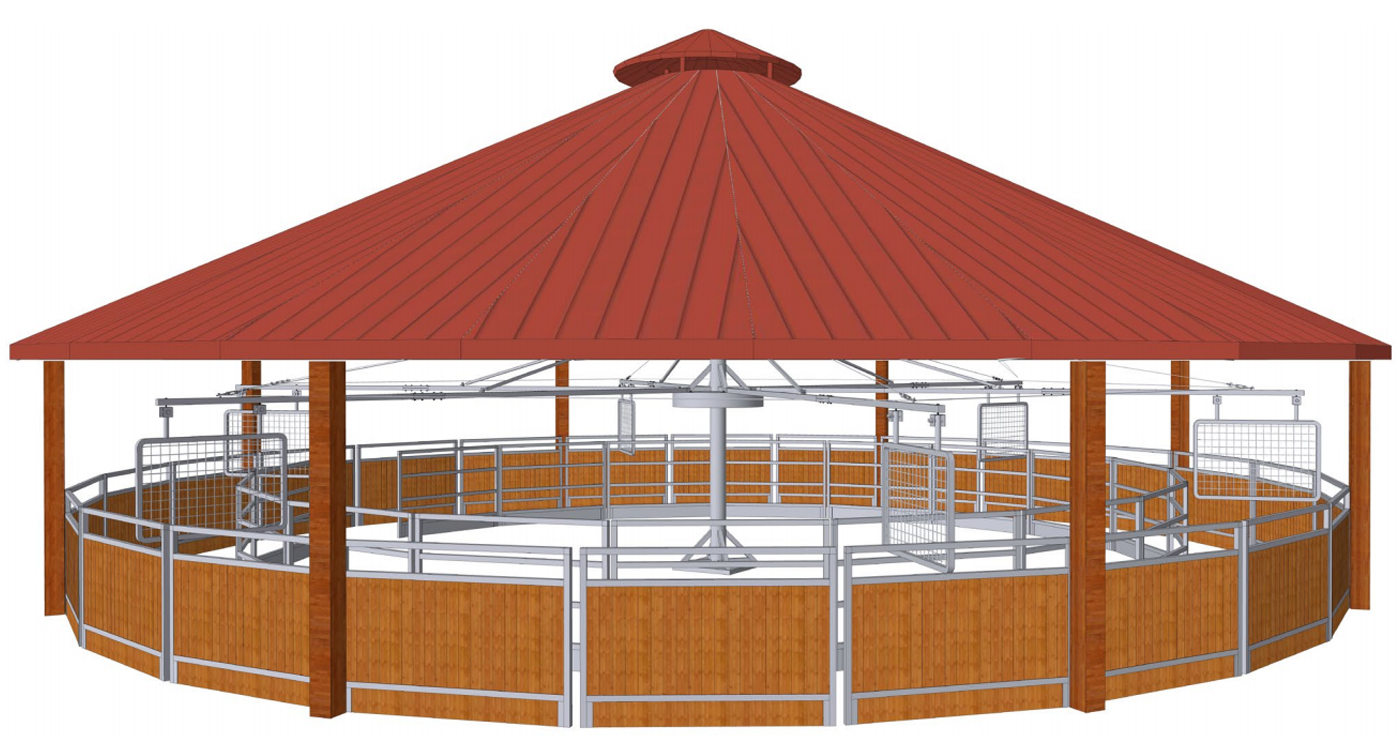

Fully Enclosed Roof (Optional)	Side height: 3m Ridge height: 3.5 Double-layer windproof design Posts: Welded from 5.9 in × 3.9 in (150 mm × 100 mm) Q235 steel tubes or H-beams, with anti-corrosion coating and optional hot-dip galvanization for enhanced durability.

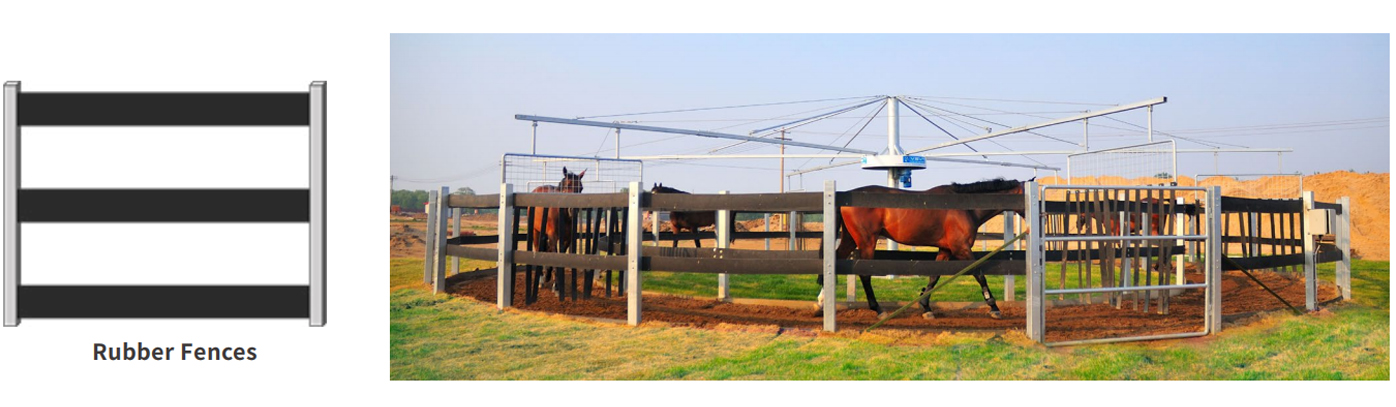

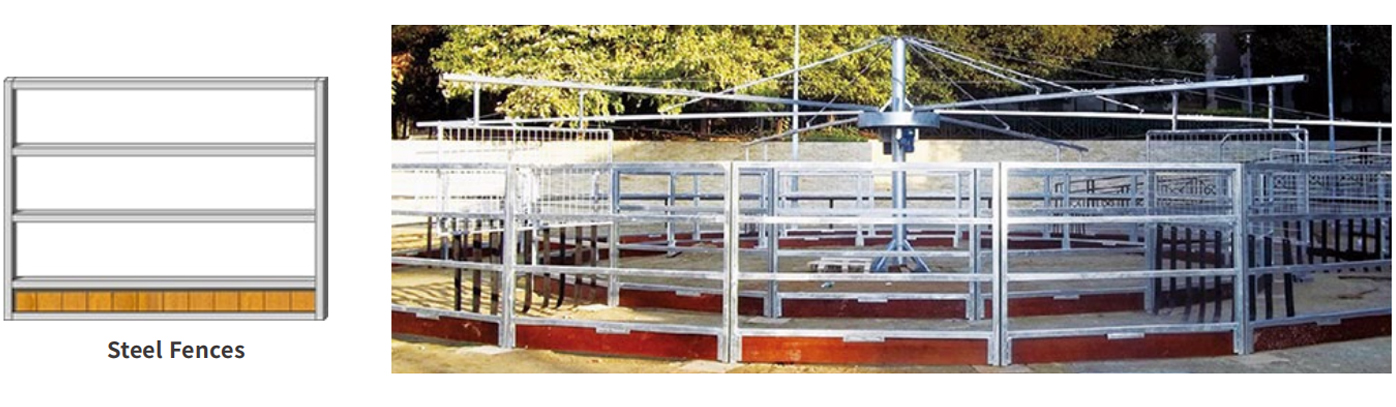

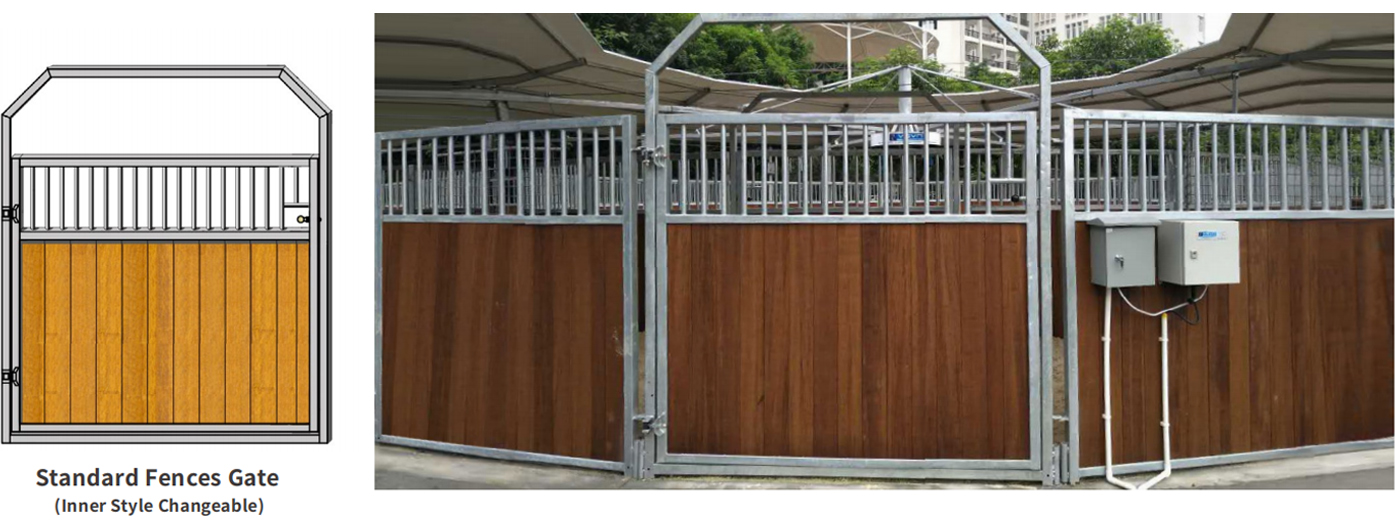

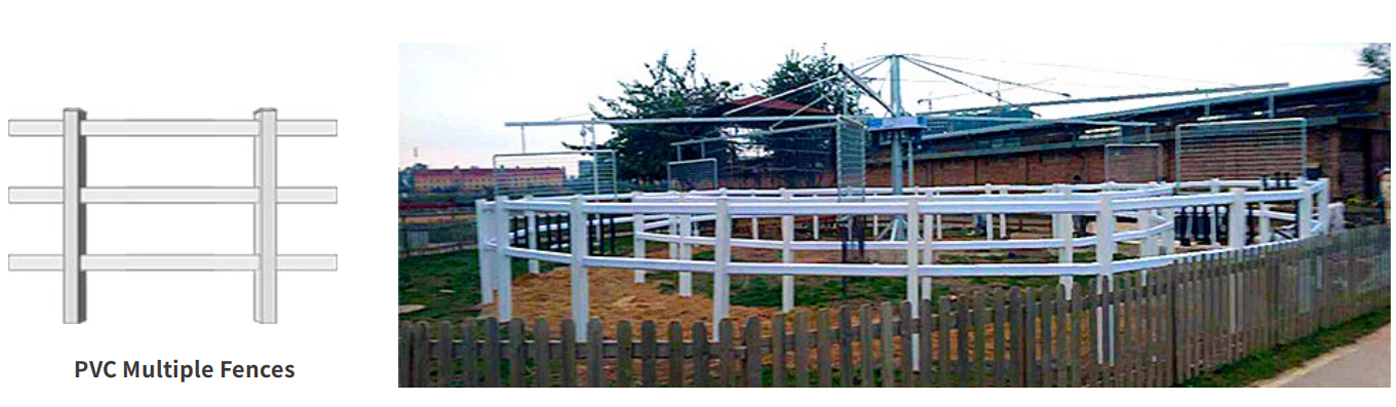

Inner Fence (Customizable)	Height: 6 ft / 6.6 ft ( 1.8m / 2m ) Panel Materials: PVC, rubber belt, wood, bamboo Frame: Welded from 2 in × 2 in (50 mm × 50 mm) Q235 steel. Multiple styles available

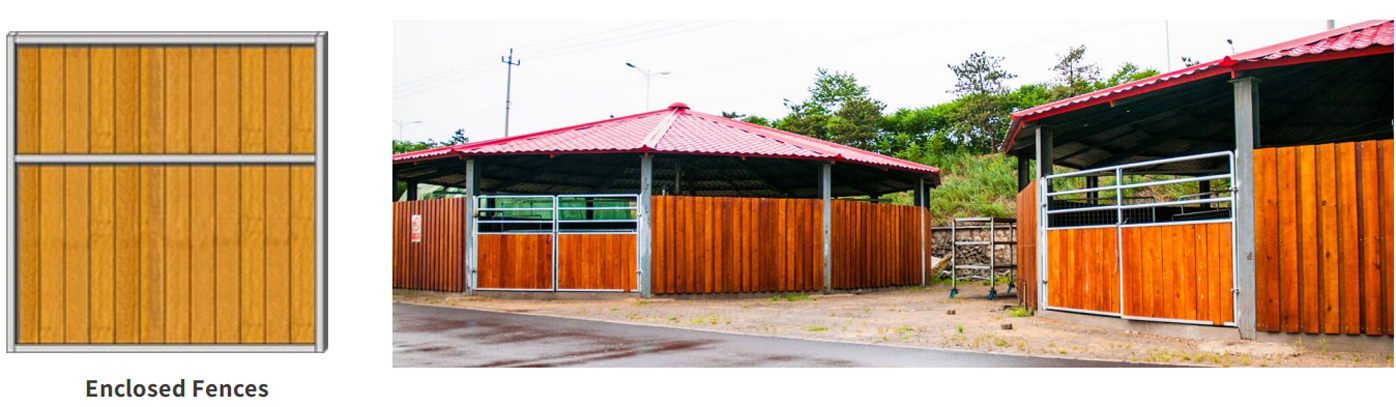

Outer Fence (Customizable)	Height: 6 ft / 6.6 ft ( 1.8m / 2m ) Panel Materials: PVC, rubber belt, wood, bamboo Frame: Welded from 2 in × 2 in (50 mm × 50 mm) Q235 steel. Multiple styles available

Flexible Accessory Configuration Guide

To meet diverse customer needs, we offer a wide range of functional and decorative accessories compatible with all our products. Some accessories require structural integration and must be specified at the time of order. Others can be ordered and installed at any time, allowing for flexible upgrades and customized enhancements.
