Arena Leveling Machine

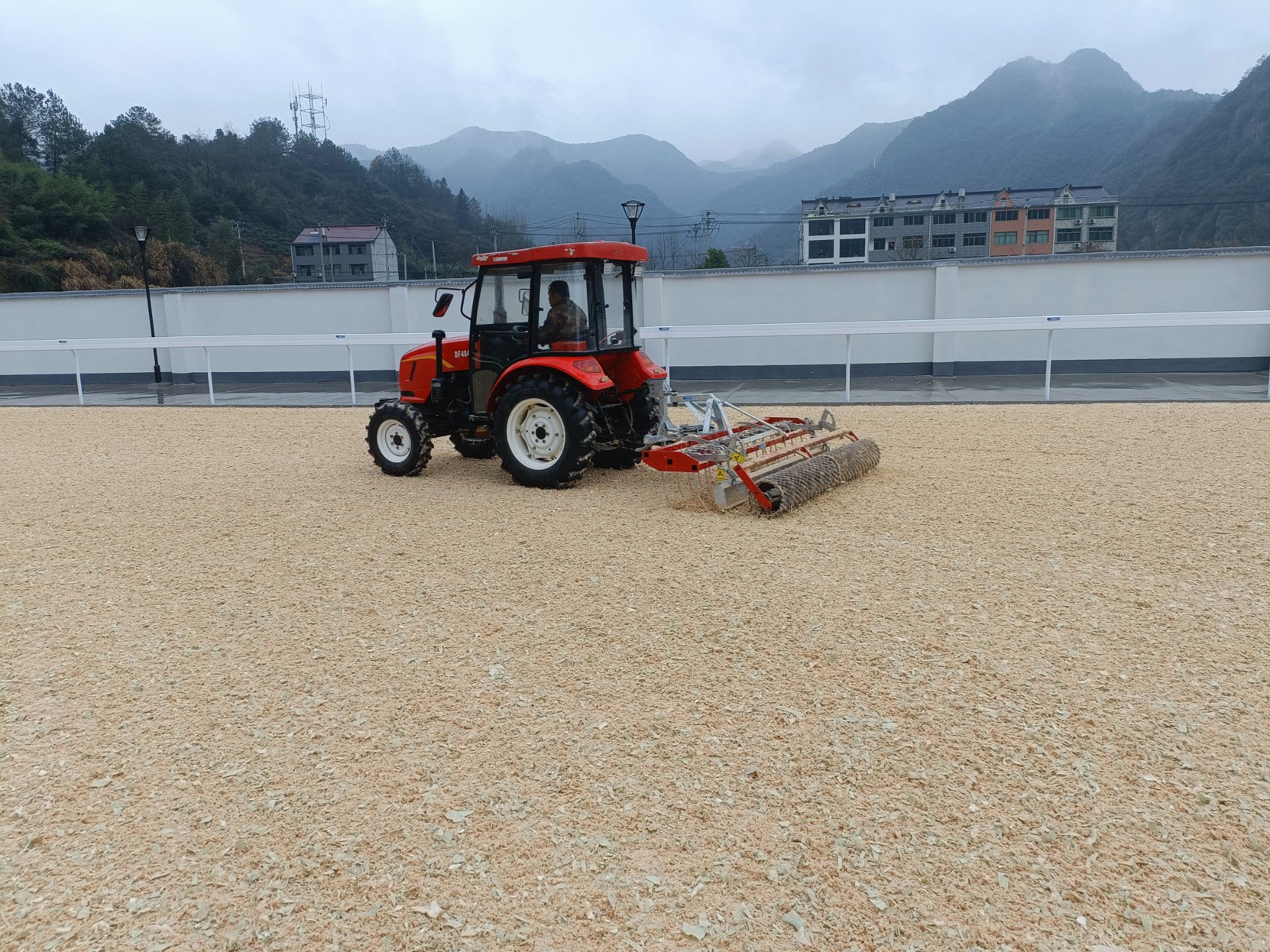

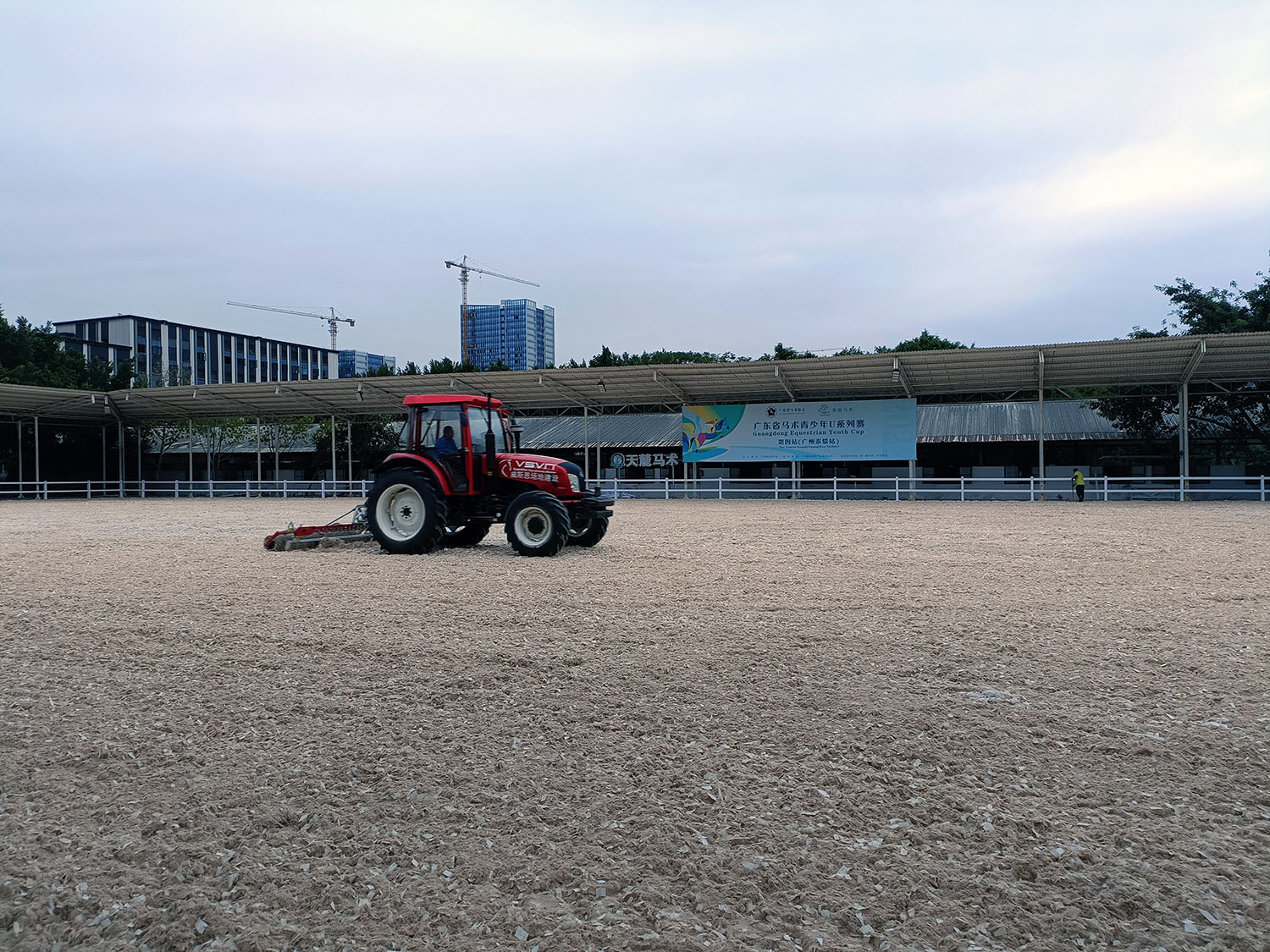

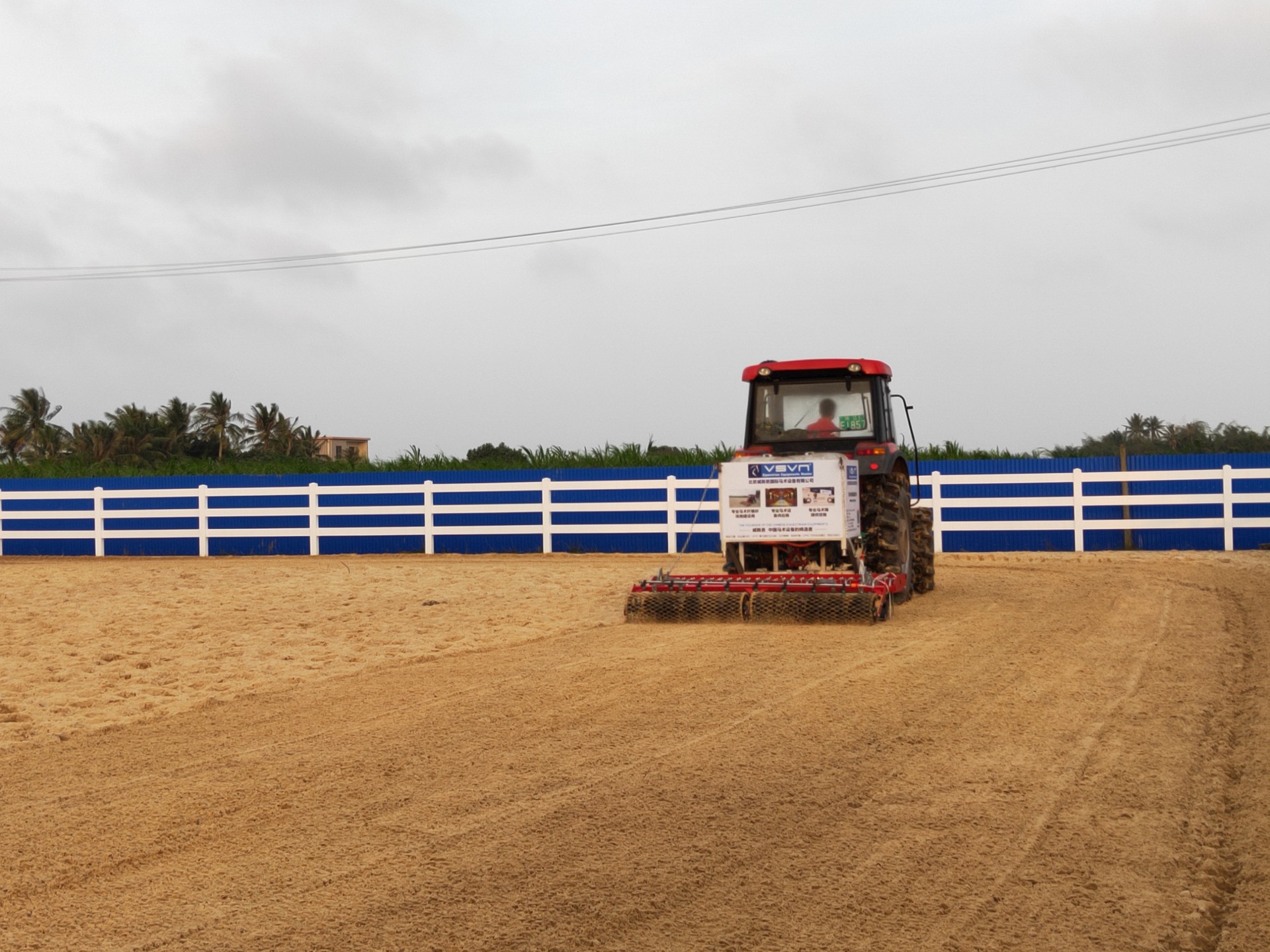

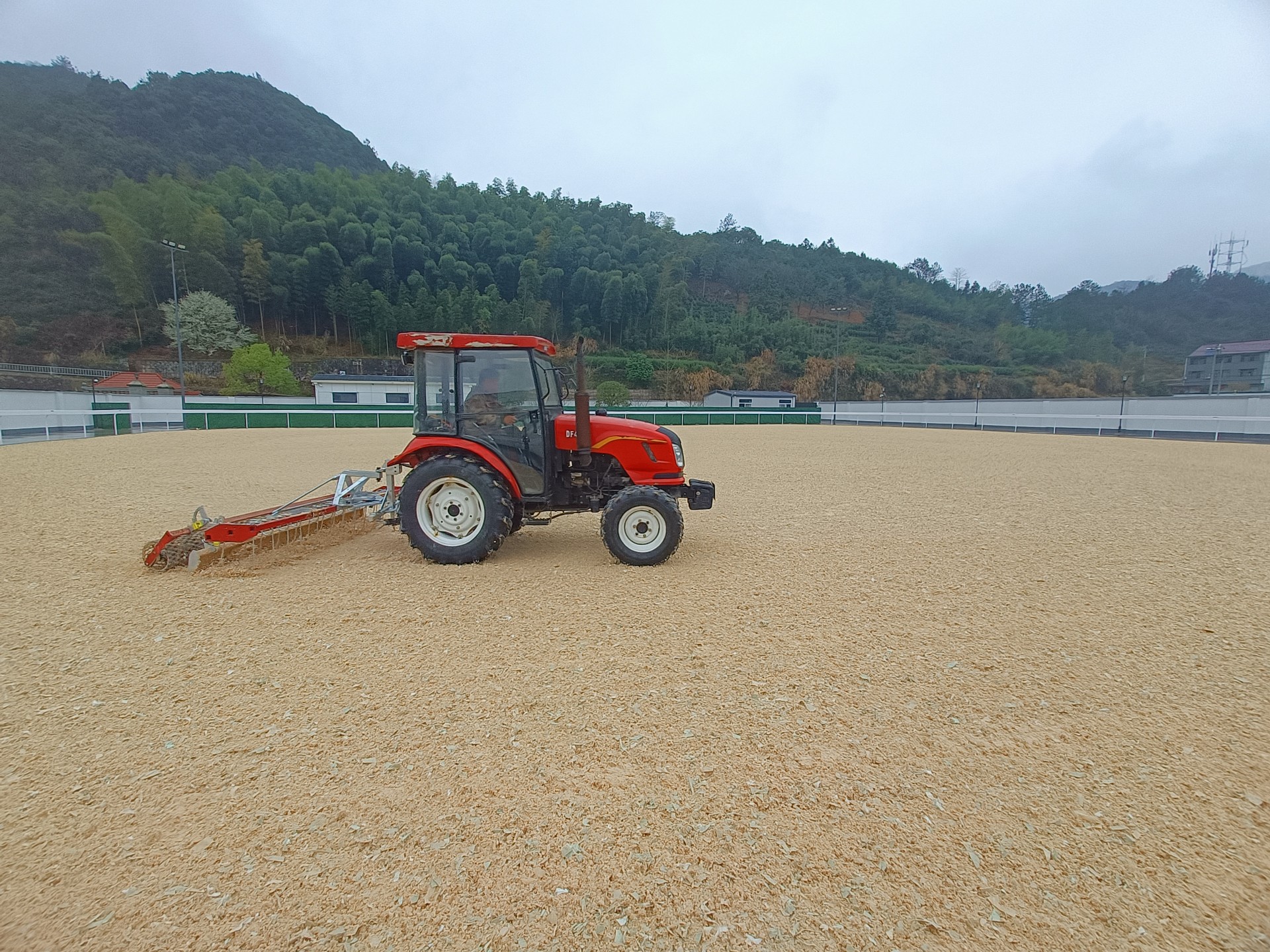

The arena leveler is designed for fiber-sand or standard sand arenas, effectively addressing issues such as compaction, uneven fiber distribution, surface irregularities, and hardened areas after prolonged use. The front hitch system is compatible with a variety of towing vehicles, including tractors, ATVs, and pickup trucks, providing versatility and ease of operation.
Details
Dimensions
Optional Accessories
Application

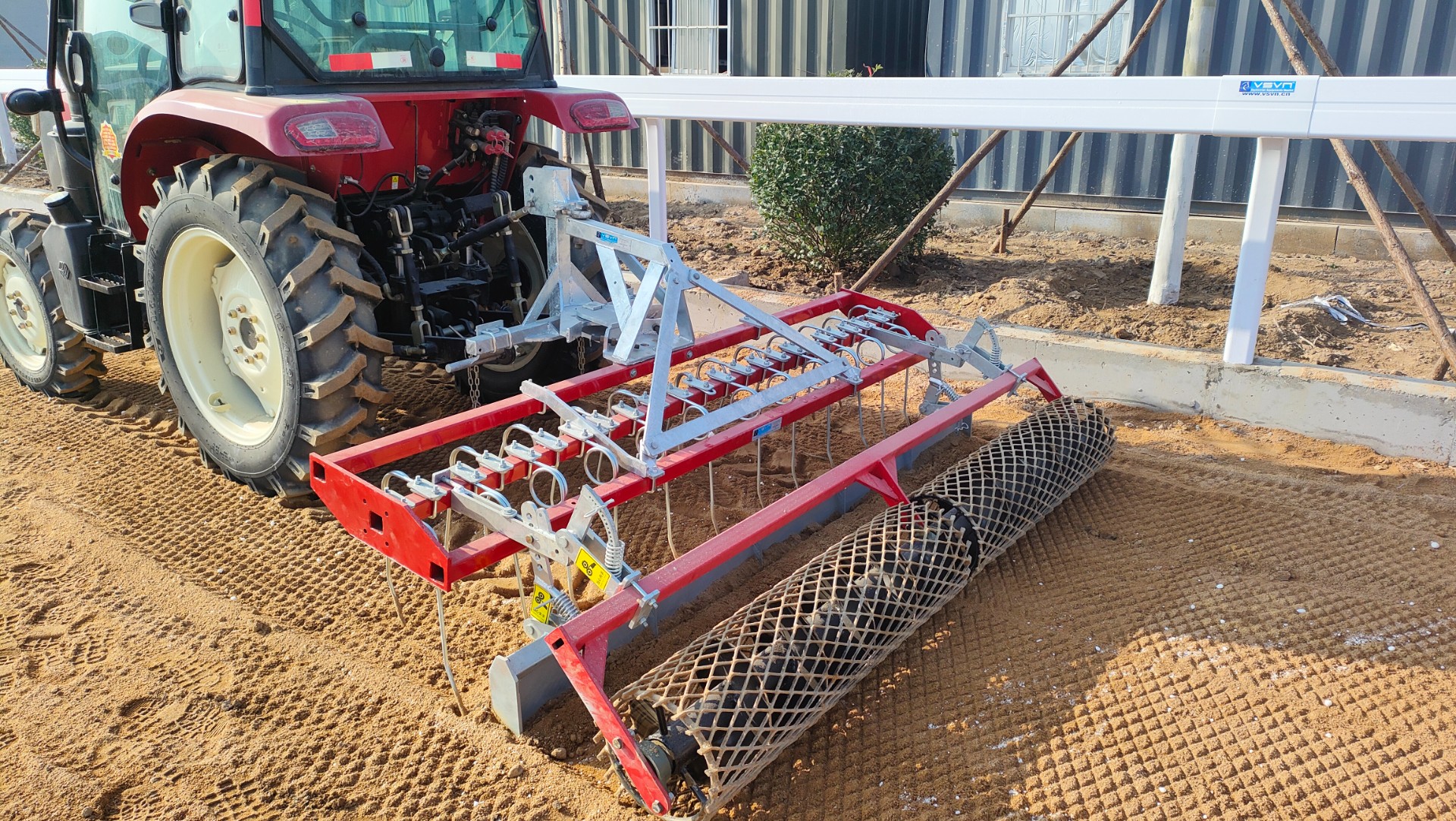

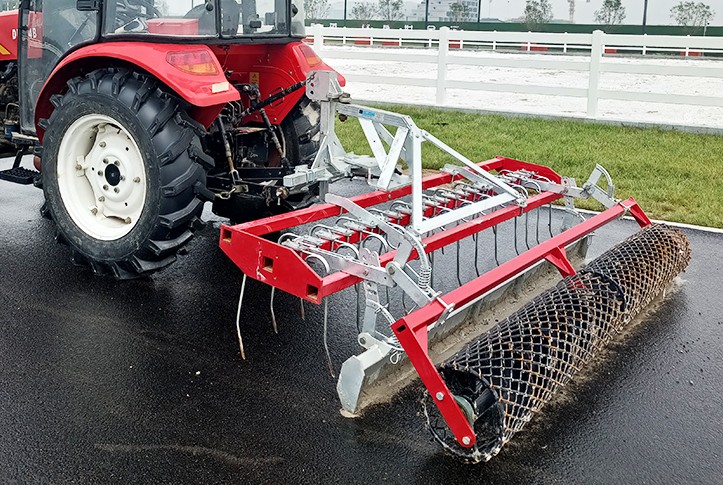

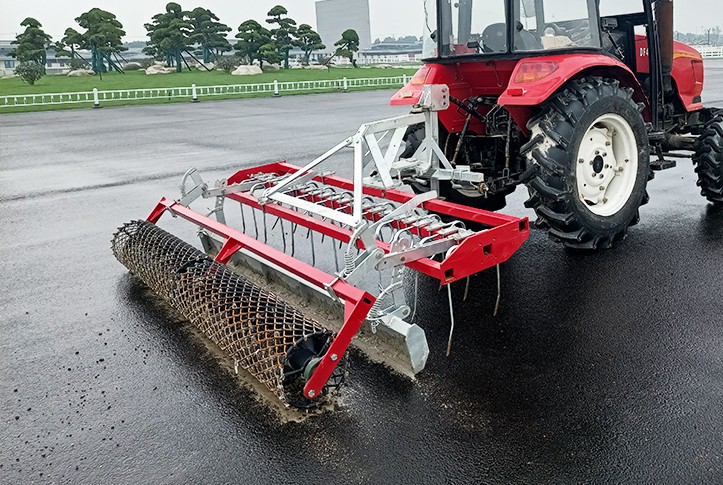

VSVN ARENA Groomer
Built with a high-strength steel frame, galvanized for corrosion resistance and finished with a sleek powder coating for long- lasting durability.All ground-contact components are individually adjustable, allowing precise control for various surface conditions.Choose from a variety of attachments and colors to customize the perfect grooming solution for your arena.

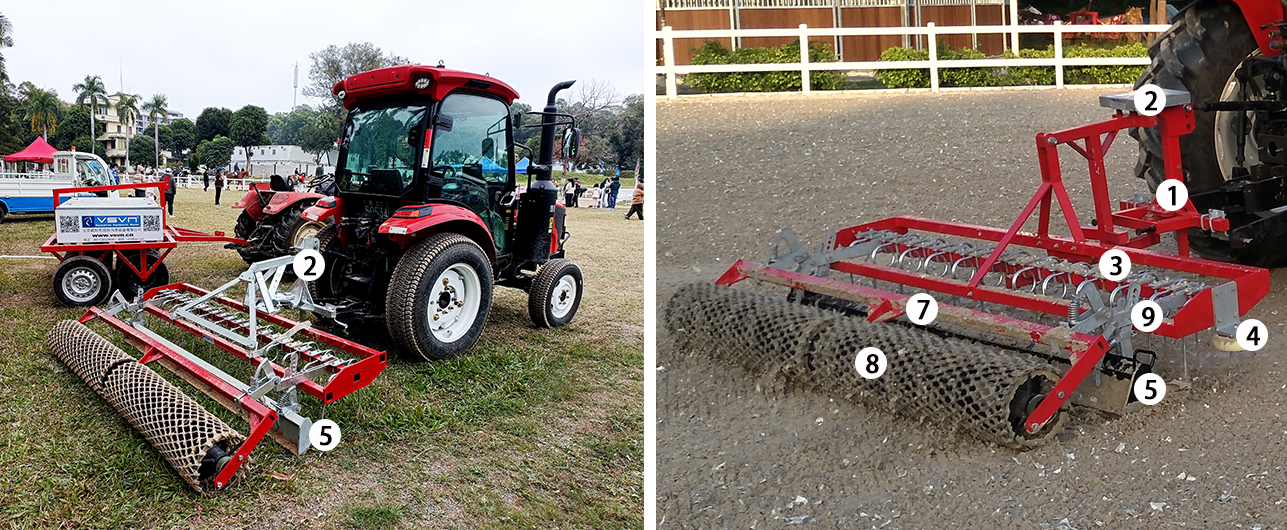

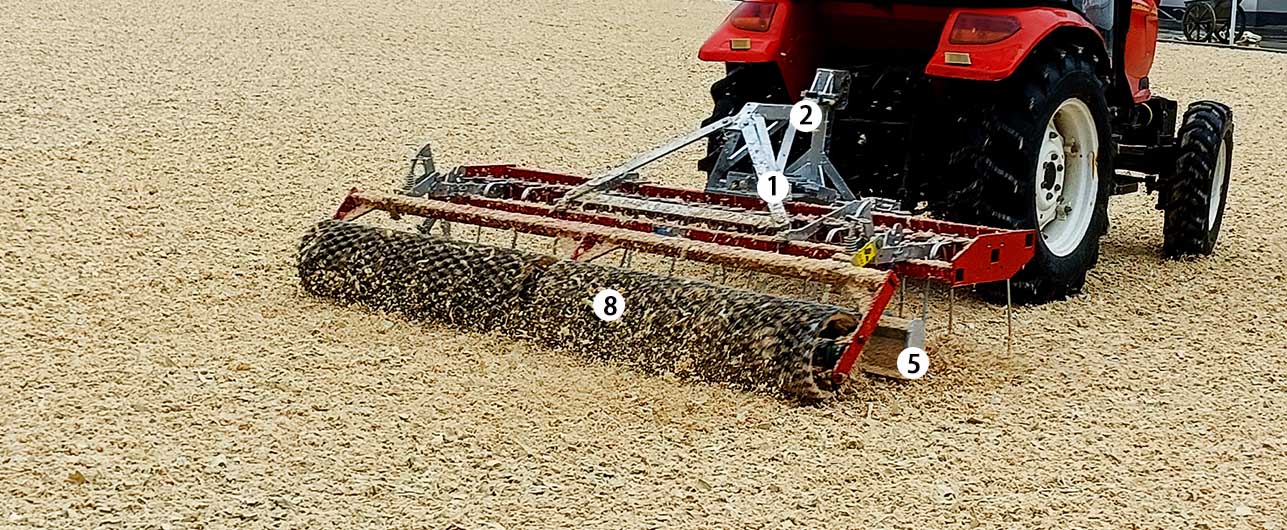

GROOMER FEATURES
Leveler Connector – 3-point hitch system connects securely to the tractor, ensuring precise tracking during turns or straight runs.
Hitch Angle Adjuster – Allows adjustment of the leveler's vertical alignment for optimal performance.
Support Stand – Provides stable support when the groomer is detached and stored.
Wall Guide Wheel – Automatically guides and repositions the groomer when it comes into contact with arena walls, preventing drift.
Surface Leveling Blade – Smooths out high spots and redistributes excess footing material to lower areas.
Blade Depth Adjuster – Enables fine-tuning of the leveling blade’s working depth.
3 Rows of 24 Tines – Penetrate, lift, mix, loosen, and level the arena surface efficiently.
Dual Rollers – Stabilize the groomer, compact the surface, and prevent the tines from digging too deeply. (Optional: Rear double-row 4 rollers)
Roller Depth Adjuster – Adjusts the working depth of the rollers for controlled compaction and smooth finishing.
| Model | Dimensions | Configuration | Towing Details | Accecssories |
| Mini | 5.9ft x 5.2 ft x1.96 ft |
|
|
|
| Standard | 8.5ftx.56ftx.26ft |
|
|
|
| Water-Spray Arena Leveler | 9.2 ftx8.8 ftx5.9 ft |
|
|
|
| Large Foldable Leveler | developed size：8.2ftx.84ft developed size: 24.6ftx.92ft |
|
|
|
| Arena Roller | 7.7 ftx8.5 ftx4.4 ft |
|
|
Flexible Accessory Configuration Guide
To meet diverse customer needs, we offer a wide range of functional and decorative accessories compatible with all our products. Some accessories require structural integration and must be specified at the time of order. Others can be ordered and installed at any time, allowing for flexible upgrades and customized enhancements.
S-shaped spring tines
T-shaped plow blades
Side guide wheel aligner
Left and right obstacle removers
Four spiral rollers
Tine Hooks
Accessories | ||||
 |  |  | ||
| S-shaped spring tines | T-shaped plow blades | Side guide wheel aligner | ||
 |  |  | ||
| Left and right obstacle removers | four spiralrollers | Tine Hooks | ||

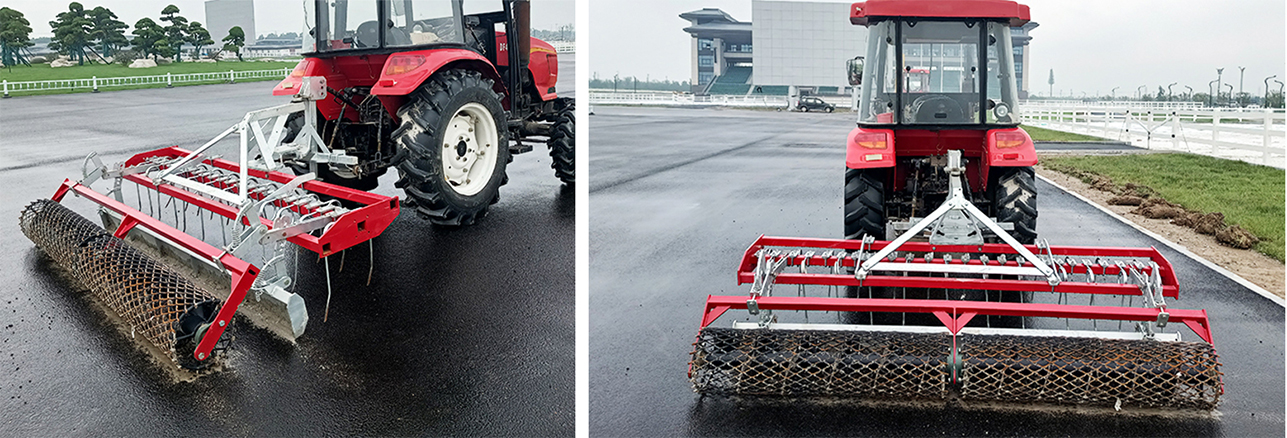

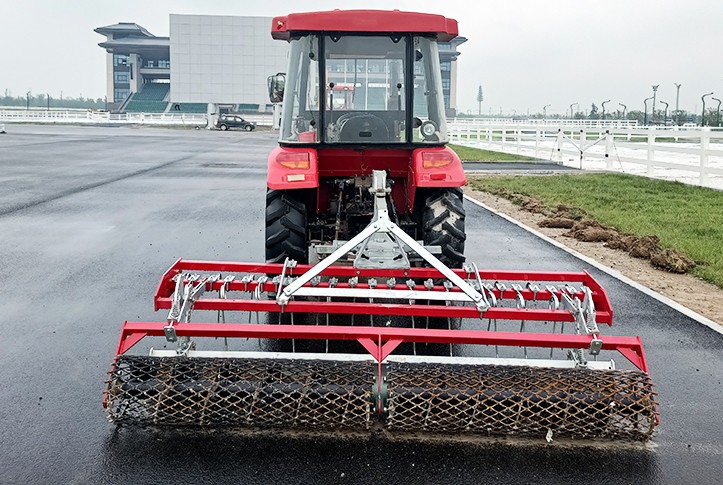

Medium Arena Leveler
This arena leveler measures 2.5 meters (8.2 ft) in width and 1.3 meters (4.3 ft) in height. Designed for use with medium-sized tractors, it comes equipped with a hydraulic linkage kit compatible with various tractor models for easy attachment.
Key Features:
Equipped with 24 spring tines in the center for loosening compacted ground.
One height-adjustable leveling blade ensures a smooth and even surface.

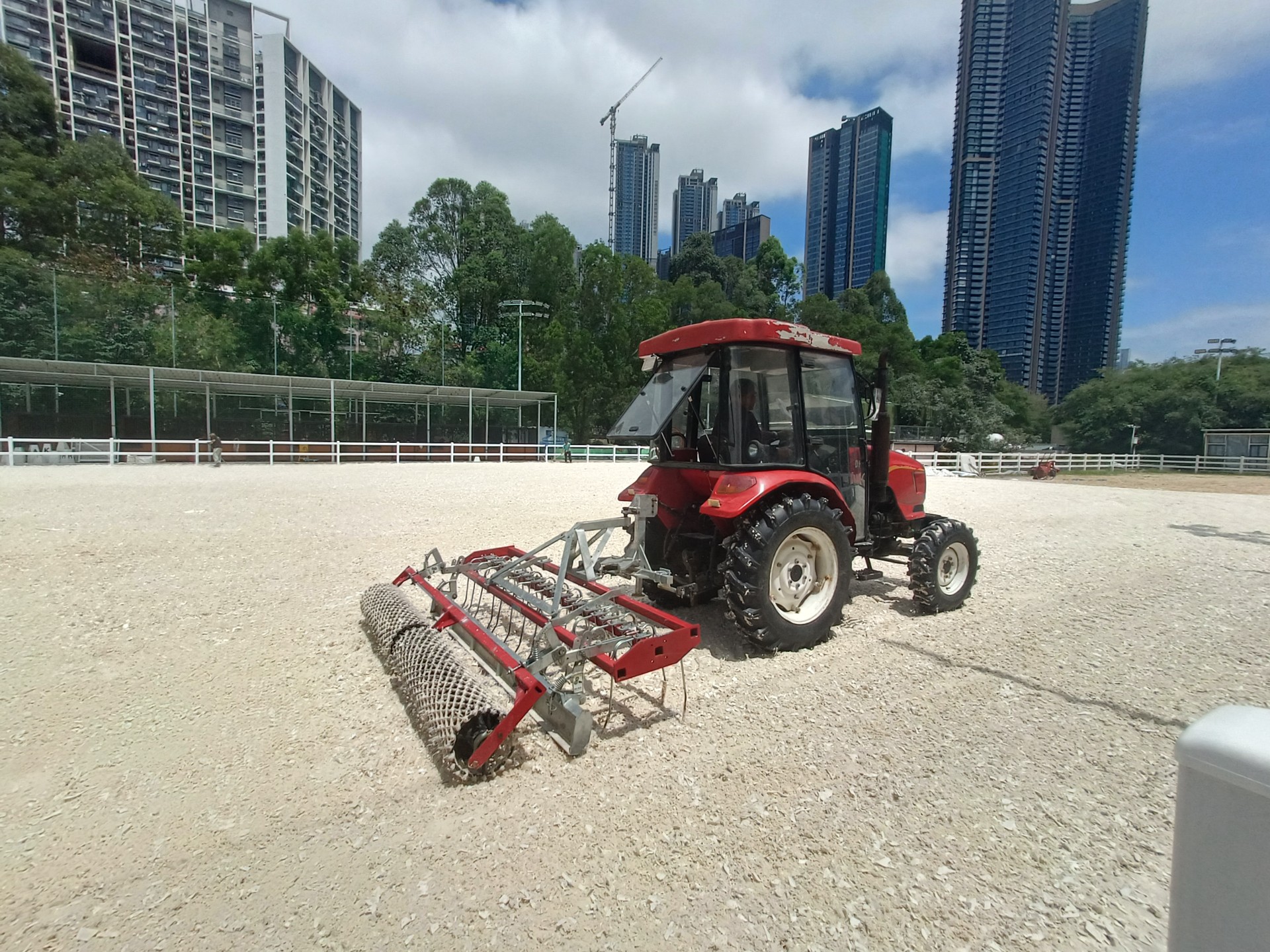

Rear section includes a dual-roller compactor with four bearings; height-adjustable. The rollers have spiral blades inside and diamond-patterned steel mesh on the outside for enhanced compaction and durability.
Two resin side guide wheels (one on each side) help maintain direction and allow for quick course correction.
Stable dual-wheel towing system ensures smooth operation over uneven terrain.
The entire steel structure is hot-dip galvanized for corrosion resistance and finished with electrostatic powder coating for long-term durability.
Each unit comes with 4 spare spring tines.
Dimensions： | 8.2 ft x 4.3 ft （2.5m x 1.3m） |
Frame Composition： |
|
Surface treatment： |
|
Fitiing options： |
|
Weight： |
Flexible Accessory Configuration Guide
To meet diverse customer needs, we offer a wide range of functional and decorative accessories compatible with all our products. Some accessories require structural integration and must be specified at the time of order. Others can be ordered and installed at any time, allowing for flexible upgrades and customized enhancements.
S-shaped spring tines
T-shaped plow blades
Side guide wheel aligner
Left and right obstacle removers
Four spiral rollers
Water Spray Dust Suppression System
Accessories | ||||
 |  |  | ||
| S-shaped spring tines | T-shaped plow blades | Side guide wheel aligner | ||
 |  |  | ||
| Left and right obstacle removers | four spiralrollers | Tine Hooks | ||
