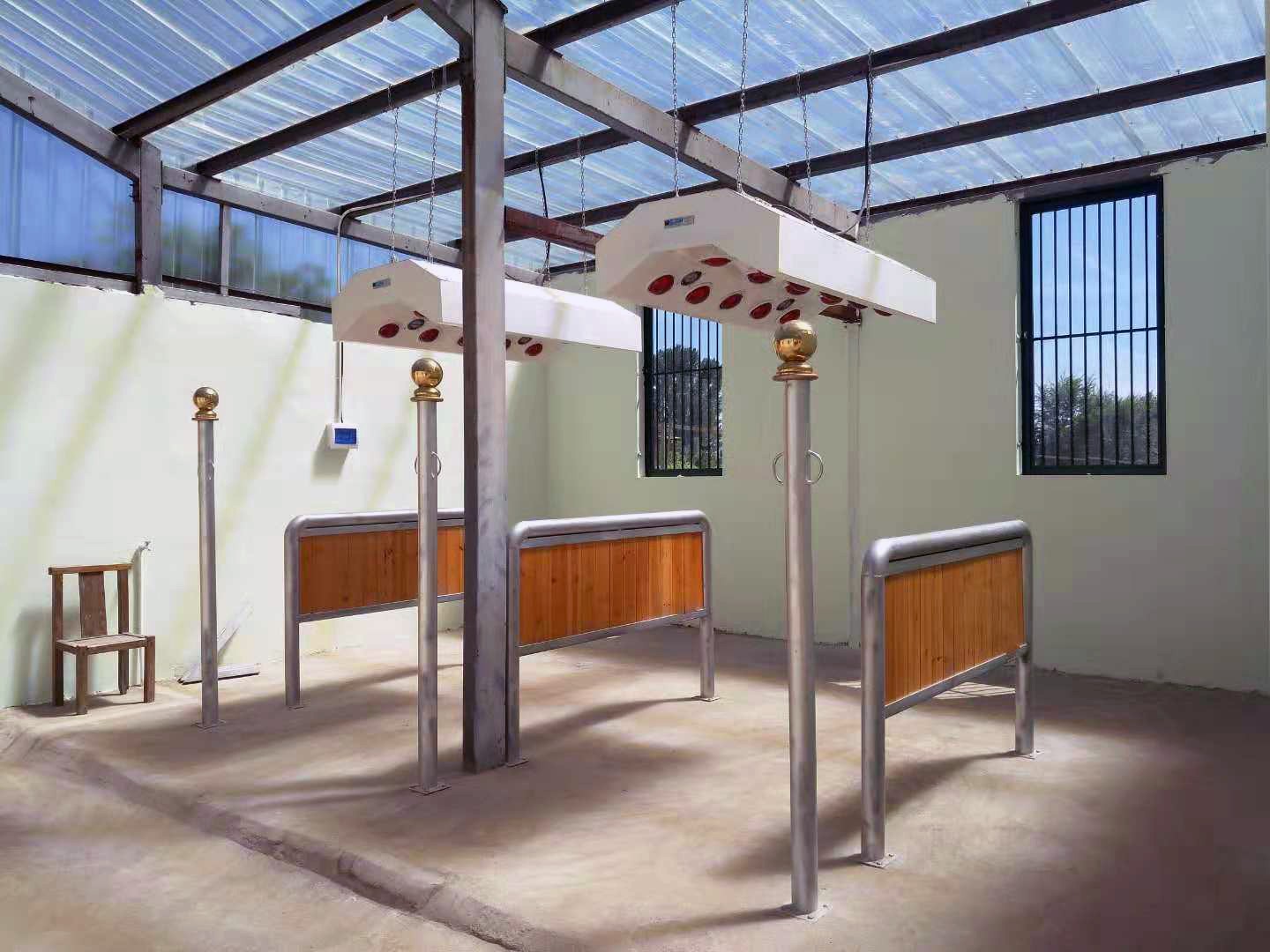

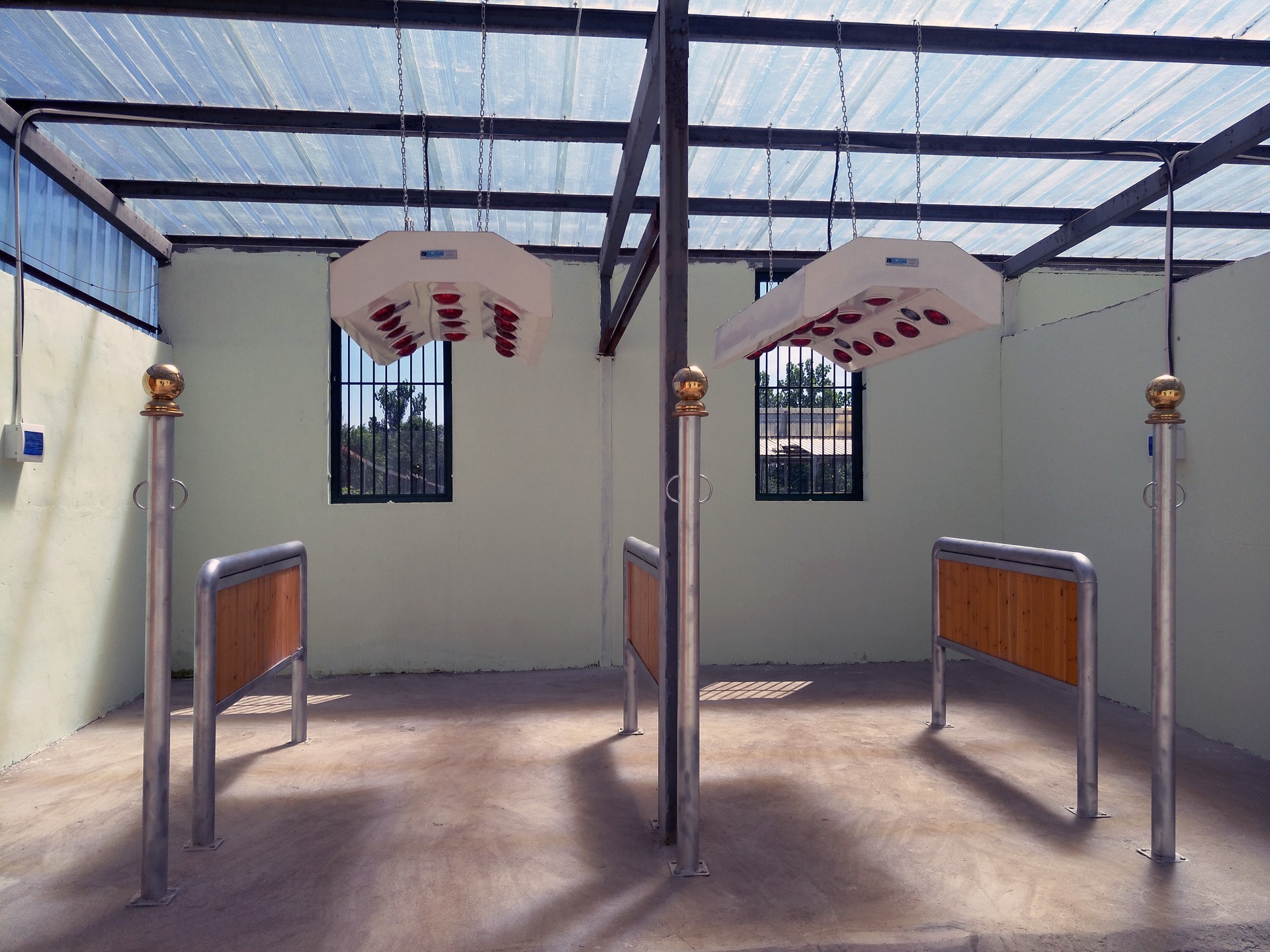

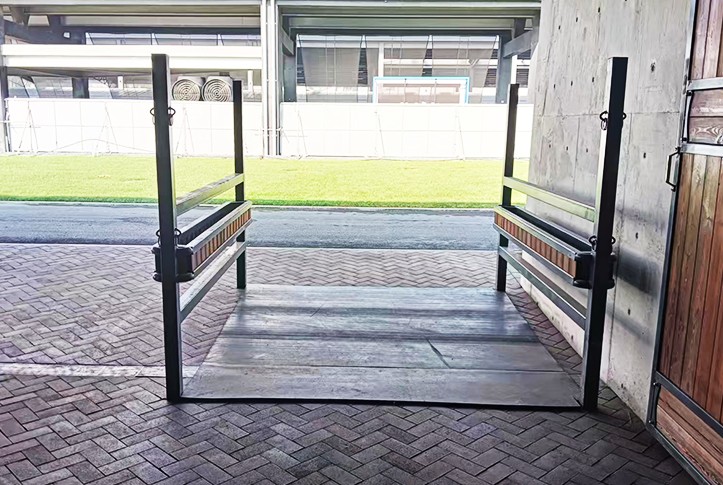

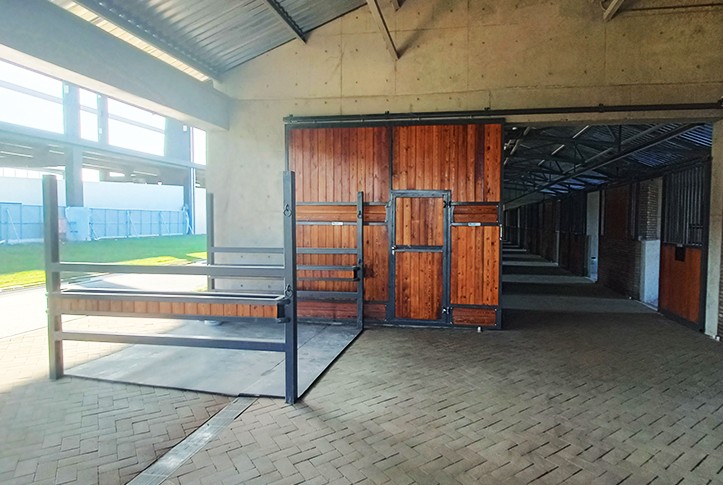

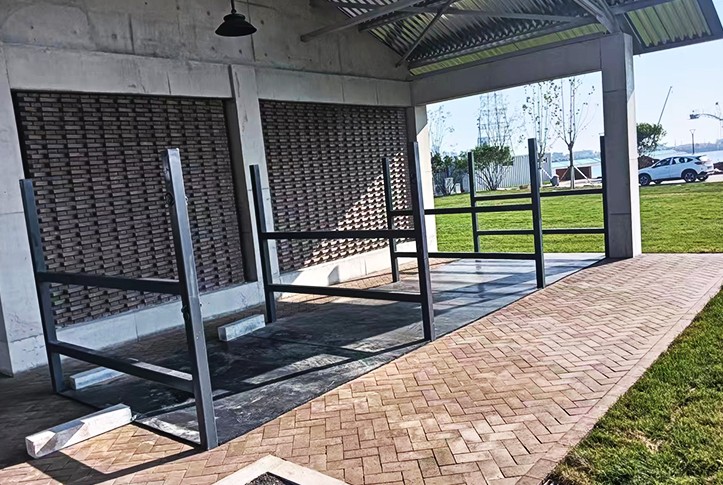

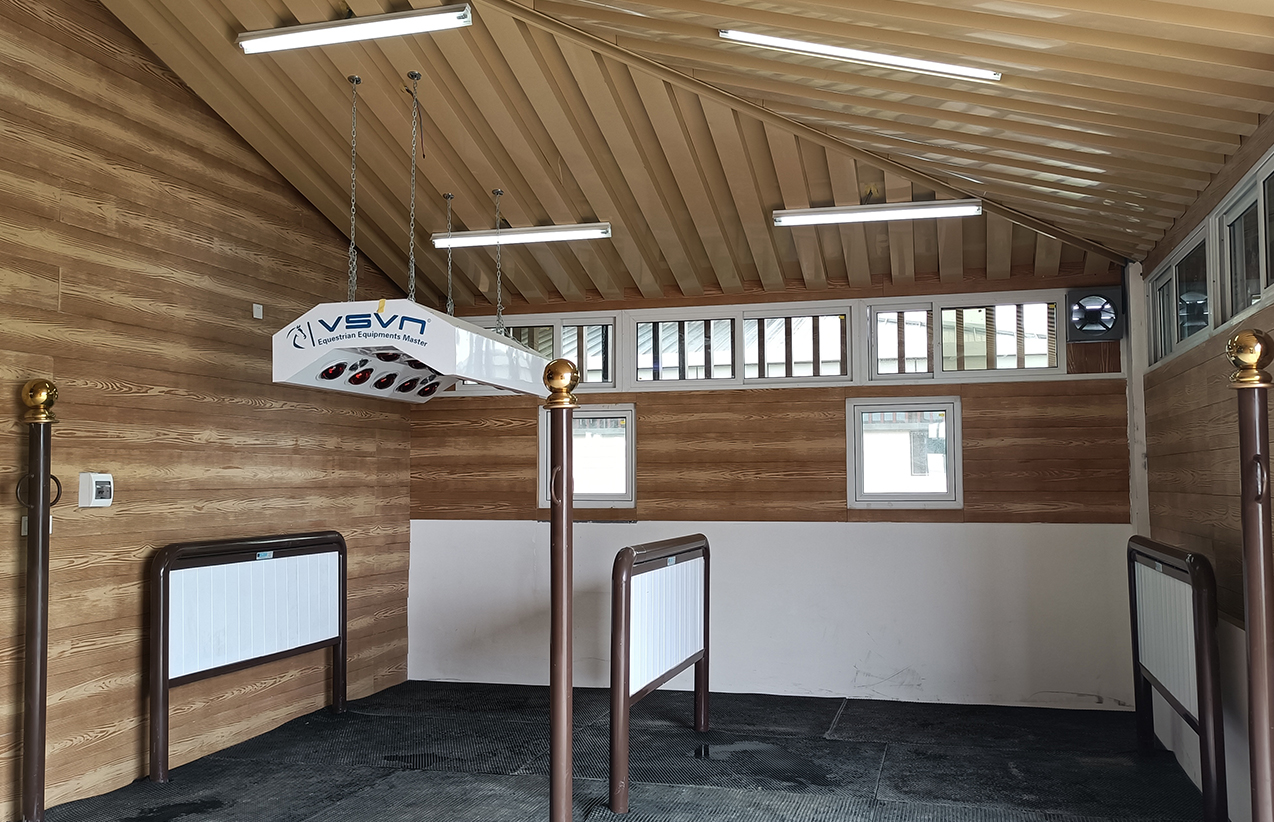

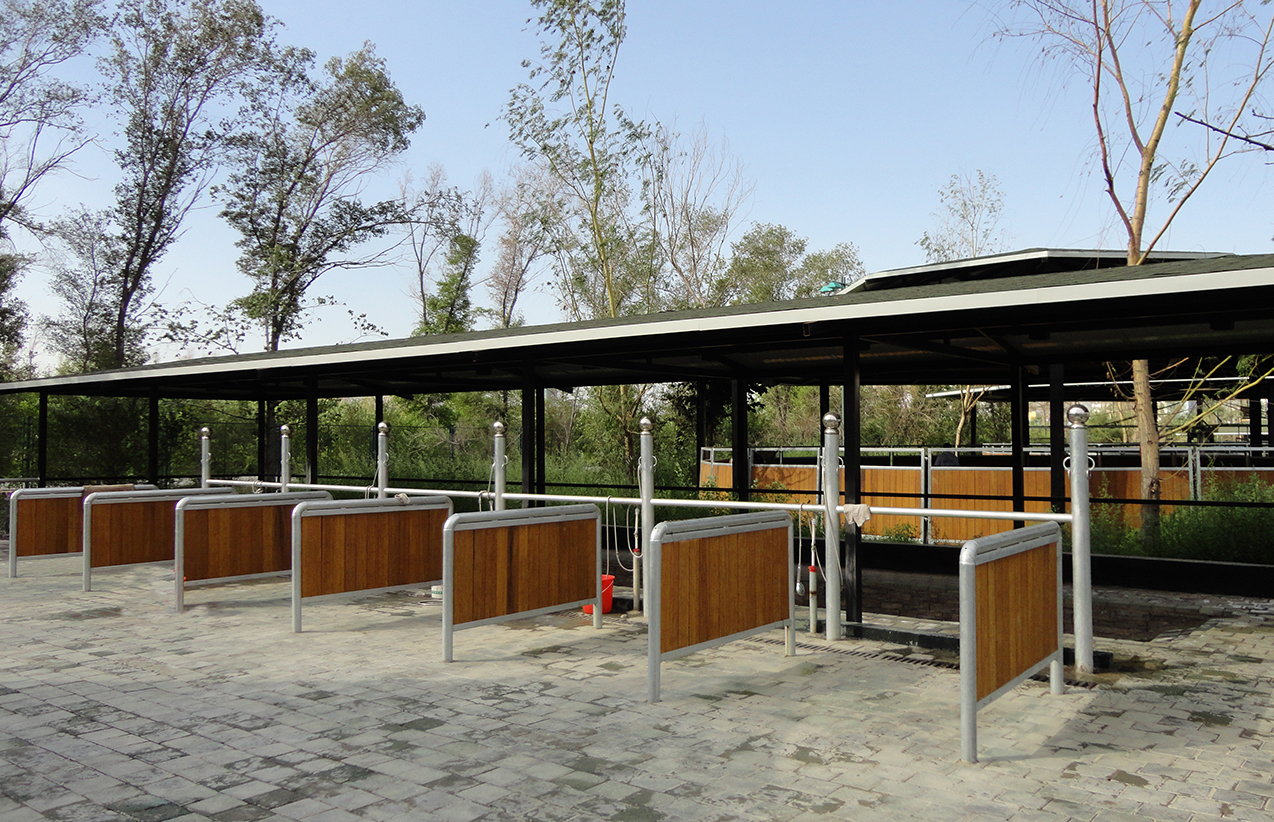

Our washing bays and tie posts are designed to provide a professional, comfortable, and secure environment for both horses and riders. The spacious wash areas feature excellent drainage systems to prevent water accumulation, ensuring a clean, dry, and stable surface for safe footing during grooming or bathing.

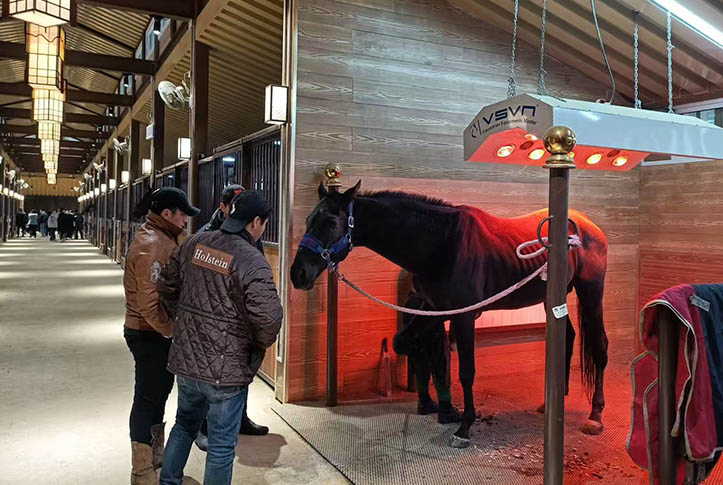

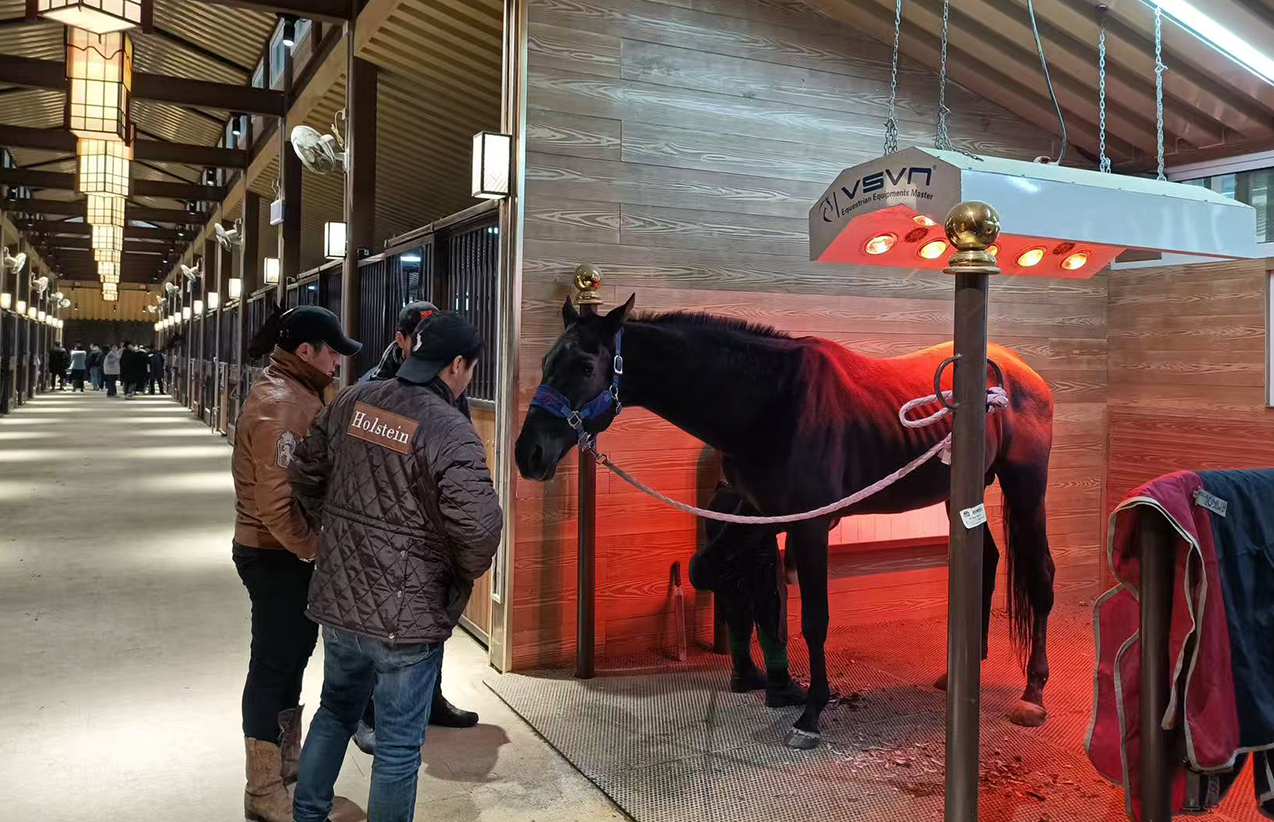

Each tie post is built with durability and stability in mind, offering a secure and calm space for horses during grooming or washing. Convenient equipment hooks and anti-slip surface treatments are integrated into the design to enhance efficiency and reduce stress for both horse and handler.

Whether you're performing daily grooming routines or preparing for a competition, our washing bays and tie posts offer a dependable and safe solution. We provide a variety of standard sizes and styles to choose from. If none of the existing options meet your needs, we also offer fully customizable manufacturing based on your specific requirements.

1. Wash Bay & Tie Post Materials

• Bamboo Panels: 0.79" / 1.10" / 1.26" / 1.50" (20 / 28 / 32 / 38 mm)

• Pine Panels: 1.10" / 1.26" / 1.57" (28 / 32 / 40 mm)

• Optional Fill Materials: Polyethylene board, plywood, or other materials

• Frame Tubing:Constructed using 3.86" (98 mm) diameter round steel pipes, 1.97" × 1.97" (50 × 50 mm) galvanized square steel tubing, and custom U-channel steel by VSVN. All surfaces are powder-coated for enhanced durability and safety. Hot-dip galvanizing is also available for additional corrosion resistance.

2. Dimensions

• Height & Length Options: Standard height is 7.22 ft (2.2 m). Length options include 4.92 ft / 6.56 ft / 8.2 ft / 9.84 ft (1.5 m / 2 m / 2.5 m / 3 m), or custom dimensions upon request.

3. Safety Features

• Locking System: Equipped with a secure locking mechanism to prevent escapes or unauthorized access.

• Rounded Edges: Smooth, rounded corners reduce the risk of injury to horses and handlers.

• EVA Safety Padding: Optional integrated EVA foam protection can be molded onto the frame to shield horses from direct contact with metal surfaces.

4. Aesthetic Design

• Available in square, rectangular, and arched frame profiles. The upper section features metal guard rails, while the lower section can be filled with bamboo panels, wooden planks, or PVC boards. Need a specific look? We offer fully customizable designs tailored to match your barn’s architectural style—balancing aesthetics and functionality.

5. Budget Consideration

• We help you achieve the best balance between cost and quality. Investing in higher-quality materials ensures long-term savings and improved performance.

6. Easy Installation

• All Wash Bay & Tie Post systems come pre-assembled with matching bolts. Posts feature welded base flanges, allowing for quick and secure ground anchoring with bolts. Fast to install, stable in use.
