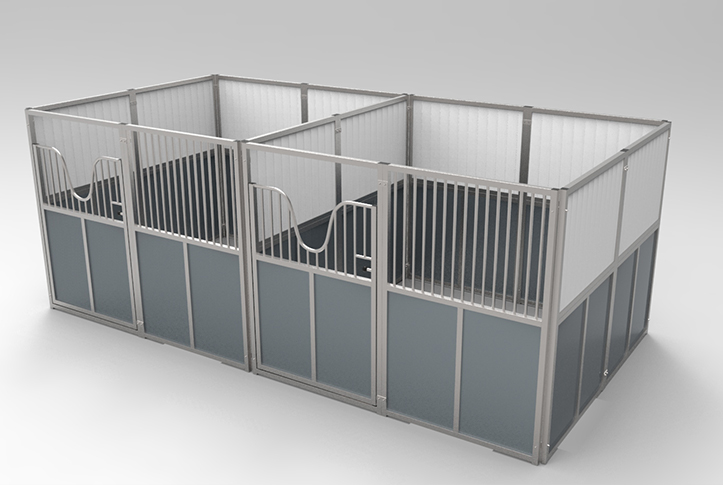

The standard composite panel horse stall features a robust steel frame structure equivalent to permanent stalls, constructed with 2" × 2" (approx. 50 × 50 mm) galvanized Q235 steel tubing, integrated with VSVN’s custom U-channel reinforcements to enhance rigidity. It is equipped with universal connectors compatible with VSVN tent systems for fast and secure installation.

The upper section uses 1.1" (28 mm) thick PVC composite panels with an internal ribbed hollow-core structure—lightweight, strong, non-toxic, eco-friendly, and durable.

The lower section consists of 0.47" (12 mm) multilayer plywood or optional 12 mm HDPE panels, both offering excellent waterproofing and chew resistance to ensure horse safety.

This modular design combines mobility and structural durability, delivering safety and stability comparable to permanent buildings—an ideal solution for equestrian competitions and flexible facility installations.

Advantages & Customization

• 360° rotating feed doors and various accessories are available as optional features.

• Equipped with 304 stainless steel spring-loaded auto latches, bolts, and screws for durability and corrosion resistance.

• Uniform screw specifications for easy and efficient installation.

• Robust structure with a service life of up to 20 years.

• The wooden section of the front door can be customized to steel sheets, metal grills, or wire mesh, depending on your needs.

• All bamboo infill panels are upgraded free of charge to include ventilation slots for better airflow and horse comfort.

• The steel frame can be sold separately, ideal for custom builds or replacements.

• The center gate (designed for integration with brick walls) is also available as a standalone component.

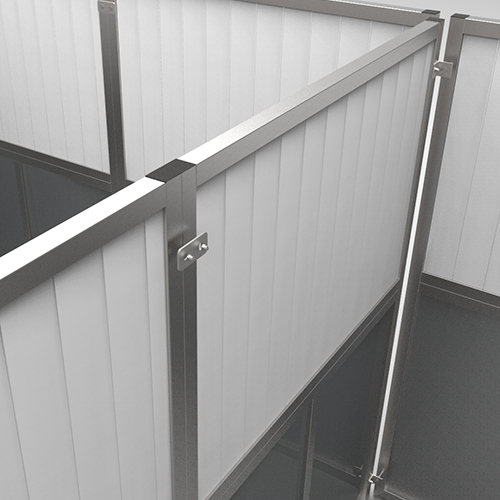

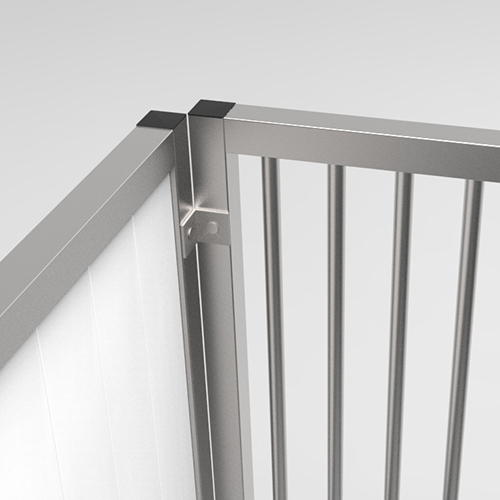

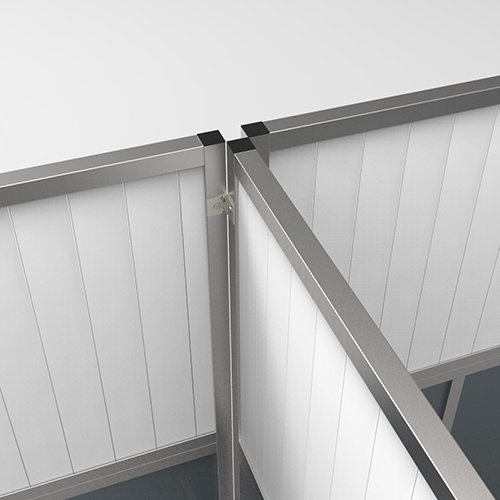

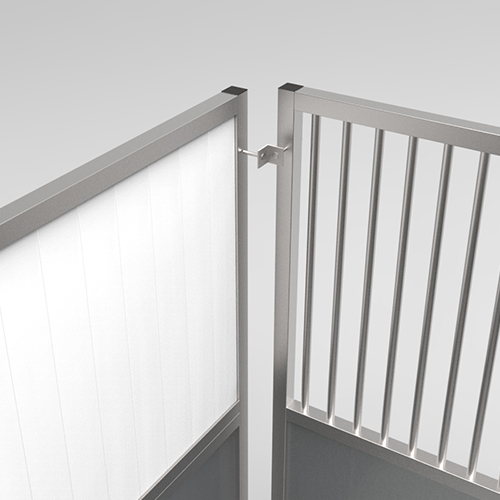

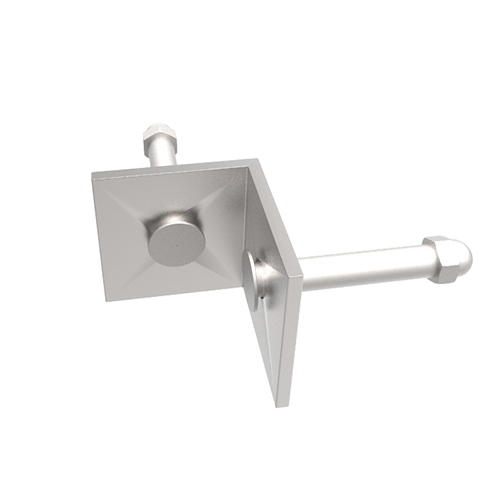

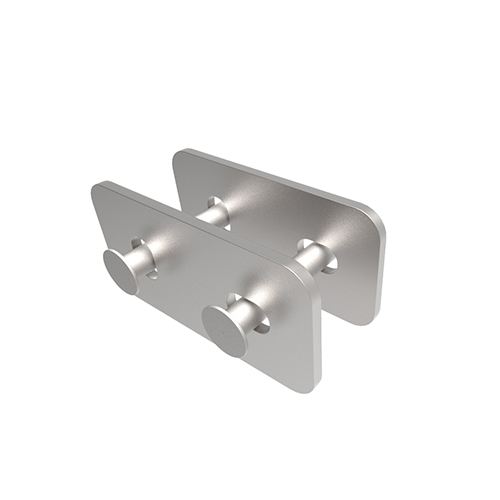

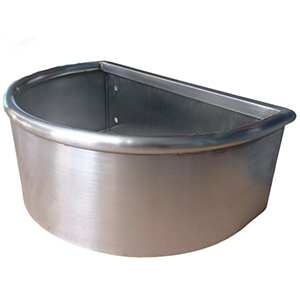

Details Showcase

Detail		Detail		Detail
Detail		Detail		Detail
