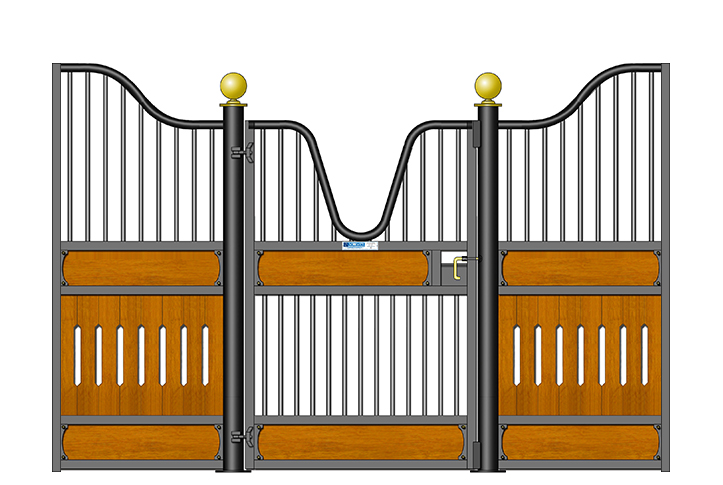

European Style Stable Front SVL-11004C

Strong, Stylish, and Ideal for High-End Equestrian Facilities

    Built with safety and sophistication in mind, VSVN’s European stalls feature a distinctive hinged structure that balances durability with refined design. Made from high-quality steel combined with solid wood or bamboo, these stalls often include elegant features such as arched doorways, decorative panels, and optional gold-accented hardware—evoking the classic charm of traditional European stables.


    Additional custom options include sliding or hinged doors, integrated feeding windows, and a variety of finishes, allowing you to create a personalized look and feel. Multiple styles are available, and all dimensions can be custom-built (depending on transportation constraints). Whether you’re working within a set budget or designing a premium equestrian estate, VSVN has the perfect solution. Our design team is ready to assist you with size selection and layout planning.

contact us
Details Dimensions Optional Accessories Application

Designed for Comfort and Safety

    One of the key features of VSVN’s European-style stall front is its focus on the comfort and safety of horses. The partition panels are designed with ventilation slots to promote optimal airflow, ensuring a healthy and well-ventilated environment inside the stable. Wide bar spacing offers clear visibility, encouraging interaction between horses and caretakers, which helps reduce stress and enhance a sense of security. The swivel feed trough allows for easy feeding and cleaning, and enables quick entry or exit when needed.


Fully Customizable to Fit Your Stable

    Beyond functionality, VSVN’s European stall fronts are fully customizable to suit your specific stable layout. Whether you require unique dimensions, different panel materials, or additional accessories, we tailor every detail to your preferences. The flexible design integrates seamlessly into both new and renovated facilities. By choosing VSVN, you’re not only enhancing the functionality of your barn—you’re also elevating its elegance and ensuring your horses’ well-being.


Advantages & Customization

  • 360° rotating feed doors and various accessories are available as optional features.

  • Equipped with 304 stainless steel spring-loaded auto latches, bolts, and screws for durability and corrosion resistance.

  • Uniform screw specifications for easy and efficient installation.

  • Robust structure with a service life of up to 20 years.

  • The wooden section of the front door can be customized to steel sheets, metal grills, or wire mesh, depending on your needs.

  • All bamboo infill panels are upgraded free of charge to include ventilation slots for better airflow and horse comfort.

  • The steel frame can be sold separately, ideal for custom builds or replacements.

  • The center gate (designed for integration with brick walls) is also available as a standalone component.

Details Showcase


U-shaped groove

Bamboo

panels with ventilation holes


Golden Ball
300X300 配件图.jpg
Spring Handle
Detail
Detail






Standard Specifications & Custom Options


    The following table presents the standard dimensions and commonly used materials for this product. We offer comprehensive customization services—simply share your requirements, and our team will assist in refining the design concept, optimizing technical drawings, and planning for transport and installation, ensuring your vision becomes a reality with efficiency and precision.


Dimensions:

10x10x7.2ft(3x3x2.2m) Standard & Custom Sizes

Height:

7.2ft(2.2m)Standard & Custom Sizes

Width:

10 ft / 12 ft / 14 ft / 16 ft or custom options (3 m / 3.6 m / 4.2 m / 4.8 m)

Frame Composition:

  • Main frame made from 2" × 2" (50 × 50 mm) Q235 steel square tubing

  • Center reinforced with custom VSVN U-channel steel beam

  • Top rail uses 1" (25 mm) diameter round steel pipe

  • Front posts constructed with 4.25" (108 mm) diameter heavy-duty round steel tube

Surface treatment:

  • Galvanized metal frame with anti-corrosion coating using

  • electrostatic powder spraying (available in various colors)

  • or hot-dip galvanizing (optional)

Infill material:

  • Bamboo panels: 0.79" / 1.10" / 1.26" / 1.50" (20 / 28 / 32 / 38 mm)

  • Pine panels: 1.10" / 1.26" / 1.57" (28 / 32 / 40 mm)

  • Polyethylene board / Plywood / Other materials

Accessory:

  • Gold-plated decorative ball

  • sculpted horse head

  • 304 stainless steel gold-plated nuts

  • front engraved logo

Fitiing options:

  • 360° rotating feed trough & bracket

  • 45° angled feed trough

  • Stainless steel feed trough

  • Aluminum feed trough

  • Automatic waterer

  • Bridle rack

  • Saddle rack

  • Independently opening small access door

Weight:

Approx. 440 lbs (200 kg)



Flexible Accessory Configuration Guide


    To meet diverse customer needs, we offer a wide range of functional and decorative accessories compatible with all our products. Some accessories require structural integration and must be specified at the time of order. Others can be ordered and installed at any time, allowing for flexible upgrades and customized enhancements.


  • Decorative Accessories

Pillar horse head decoration
Column gold ball decoration
Stable door logo engraving





  • Functional Inserts



Square Trough
Trough


Direct feed chute frame
Rotating Trough






  • Standalone Add-on Features

Saddle cushion frame
Water strangle
Saddle frame
Basket
Horse nameplate
Basket



Automatic water fountain
Basket
