The horse walker has a fully enclosed roof

Horse training is a comprehensive endeavor. The circular, fully enclosed roof walker ensures all-weather training regardless of rain, snow, or harsh conditions. Its full-height fencing enhances safety and consistency, while optional systems such as lighting, dust suppression, and windproof netting add further functionality. Roofing options include corrugated panels, fiberglass tiles, or metal sheets—each offering durability while making the walker a visual highlight of the facility.

With years of experience in constructing circular training structures, VSVN delivers both technically refined and aesthetically pleasing steel and timber frameworks, making them adaptable to a wide range of equestrian environments.

Details Dimensions Optional Accessories Application

Flexible Accessory Configuration Guide

To meet diverse customer needs, we offer a wide range of functional and decorative accessories compatible with all our products. Some accessories require structural integration and must be specified at the time of order. Others can be ordered and installed at any time, allowing for flexible upgrades and customized enhancements.

Inner and Outer Fence Options

Metal Grill Semi-Enclosed Fence Door

Steel Frame Fence

Rubber Fence with Metal Posts

PVC Fence

Wooden/Bamboo Board Semi-Enclosed Fence

Wooden/Bamboo Board Fully Enclosed Fence

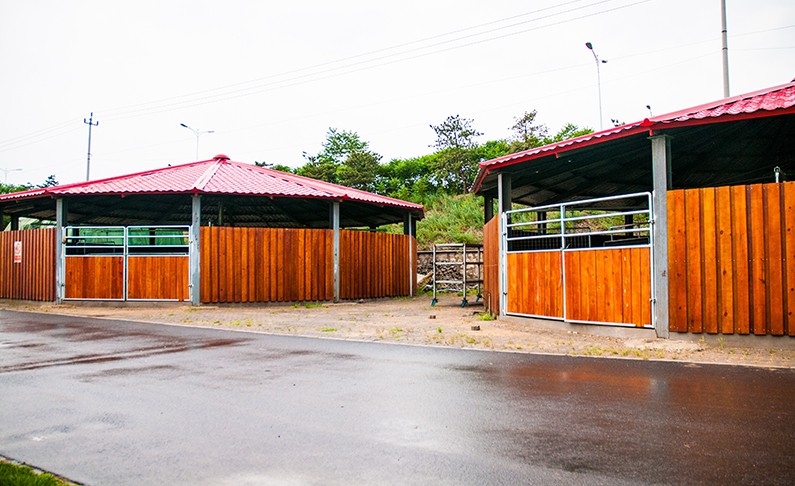

Semi-Enclosed Roof

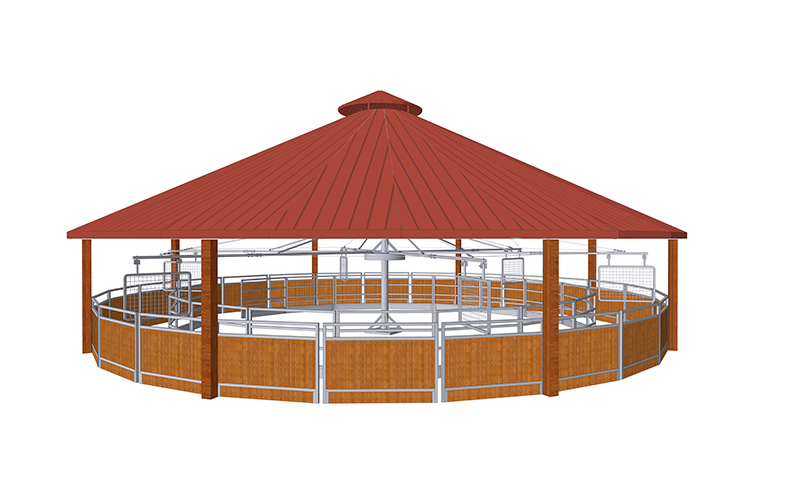

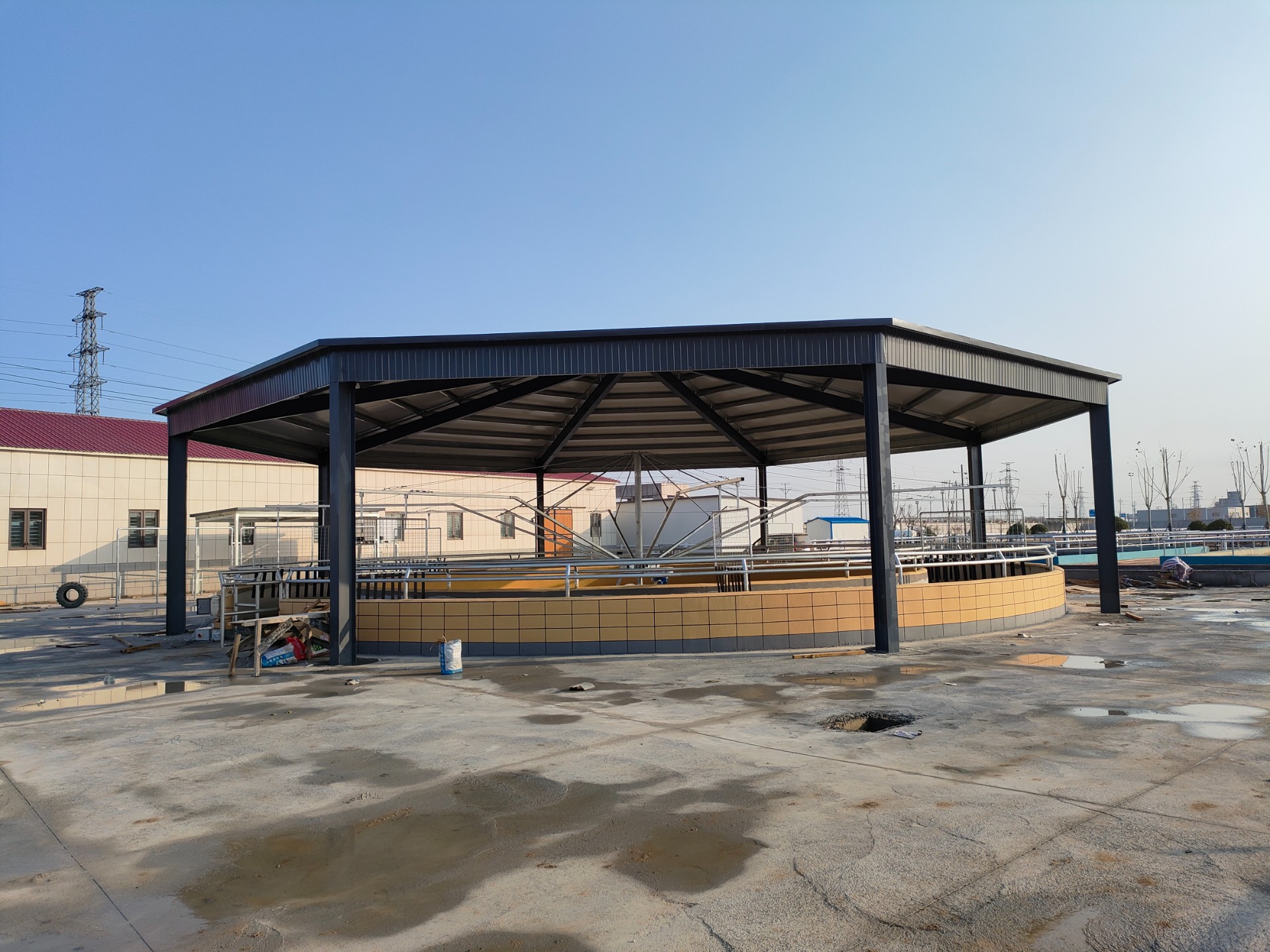

Fully Enclosed Roof

Diameter	30 ft（9m）	43 ft（13m）	50 ft（15m）	60 ft（18m）		66 ft（20m）
Horse Capacity	3	4	4-6	6	8	6	8
Motor Brand：（Germany NORD） Power：0.75Kw/unit Voltage：220V (Single-phase)	1 unit	1 unit	2 unit	2 unit	2 unit	2 unit	2 unit
Control System:Siemens Standard Inverter (Standard for all models)	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models
Control System Siemens Touchscreen Advanced Controller (Optional)	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models
Sprinkler Dust Control System	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models
Low-Voltage Branding System	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models	Optional for all models
Semi-Enclosed Roof (Optional)	Side height: 3m Ridge height: 3.5 Structure: Metal roof panels or waterproof fiberglass (various colors) Posts: Welded from 5.9 in × 3.9 in (150 mm × 100 mm) Q235 steel tubes or H-beams, with anti-corrosion coating and optional hot-dip galvanization for enhanced durability.
Fully Enclosed Roof (Optional)	Side height: 3m Ridge height: 3.5 Double-layer windproof design Posts: Welded from 5.9 in × 3.9 in (150 mm × 100 mm) Q235 steel tubes or H-beams, with anti-corrosion coating and optional hot-dip galvanization for enhanced durability.
Inner Fence (Customizable)	Height: 6 ft / 6.6 ft ( 1.8m / 2m ) Panel Materials: PVC, rubber belt, wood, bamboo Frame: Welded from 2 in × 2 in (50 mm × 50 mm) Q235 steel. Multiple styles available
Outer Fence (Customizable)	Height: 6 ft / 6.6 ft ( 1.8m / 2m ) Panel Materials: PVC, rubber belt, wood, bamboo Frame: Welded from 2 in × 2 in (50 mm × 50 mm) Q235 steel. Multiple styles available
