Horse jump V8505103
VSVN specializes in the design, production, and sale of equestrian jumps, all built with safety and durability as core priorities. You can choose from our complete jump sets—each including all illustrated components—or mix and match any available parts to create your own customized obstacle. Pricing varies based on the configuration.

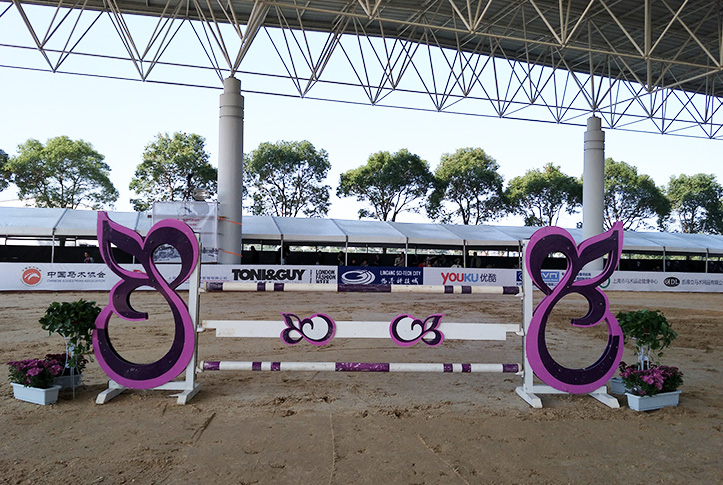

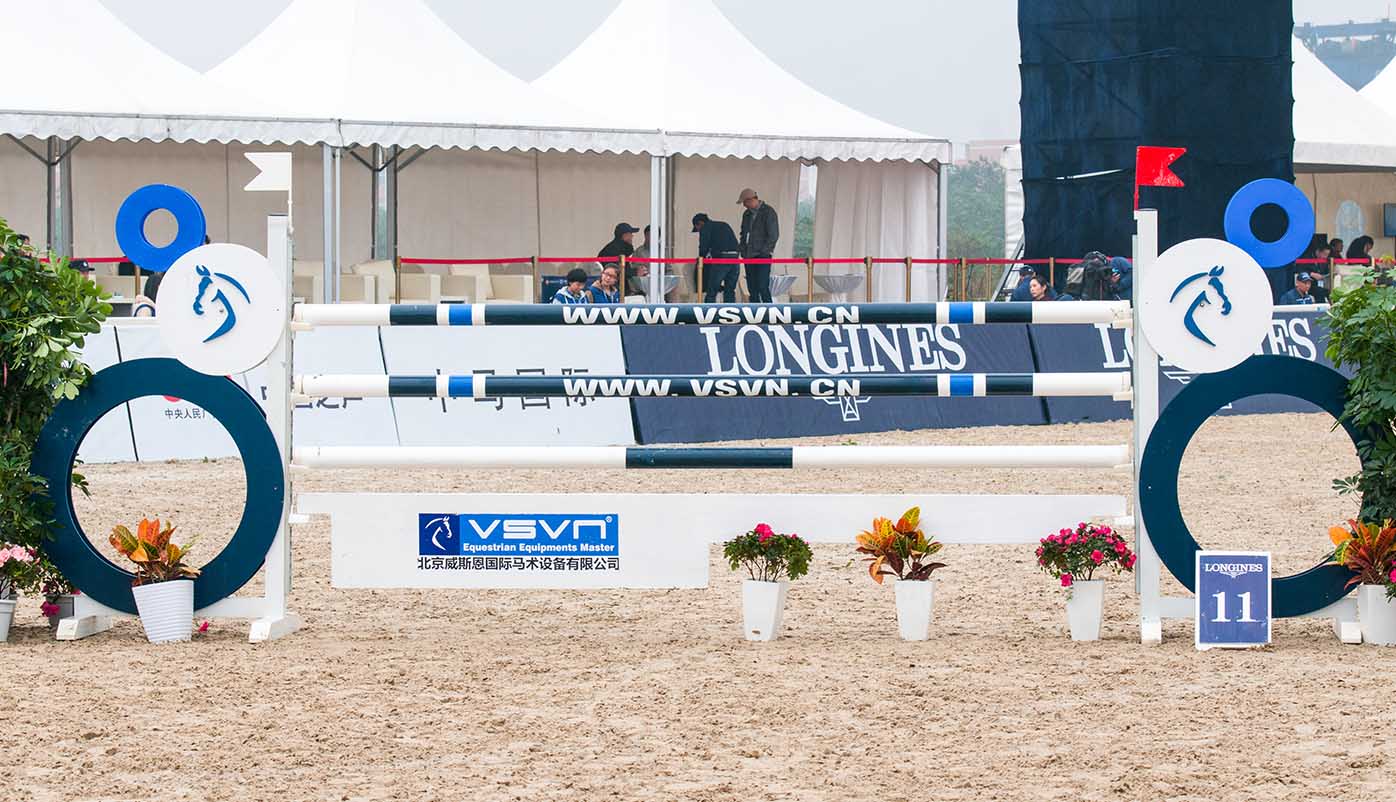

Our equestrian jumps are used in prestigious competitions such as the Asian Games, FEI events, and Longines-sponsored shows. Standard components are sold in pairs, and you can combine poles and fillers in different colors to create a wide variety of visual styles. To highlight the theme of a competition or its regional character, we also offer customized obstacle designs tailored to your branding or event identity.
Details
Dimensions
Optional Accessories
Application
Obstacle Materials & Fabrication
|
|
|
3.15”×3.15” Aluminum Alloy Frame | 5-Axis CNC Precision Machining | Robotic Electrostatic Powder Coating |
Design Elements & Custom Obstacles
Want to identify the location of an equestrian competition in just one second? It's not the language spoken by the commentators, nor the faces in the audience, or even the words on the advertisement boards Just look at the jumps in the arena. If you see the Eiffel Tower, you're in Paris.If you spot Big Ben, you're in London.And if the Statue of Liberty appears, welcome to the United States.Obstacle design isn’t just part of the course—it’s a powerful visual signature that reflects the local culture and the spirit of the event.
Manufacturing Technology
CAD Drawings
Our design concepts and creative elements are developed using CAD software, allowing for production precision down to the millimeter. CAD is also used to optimize material layout, which significantly reduces waste and lowers production costs.

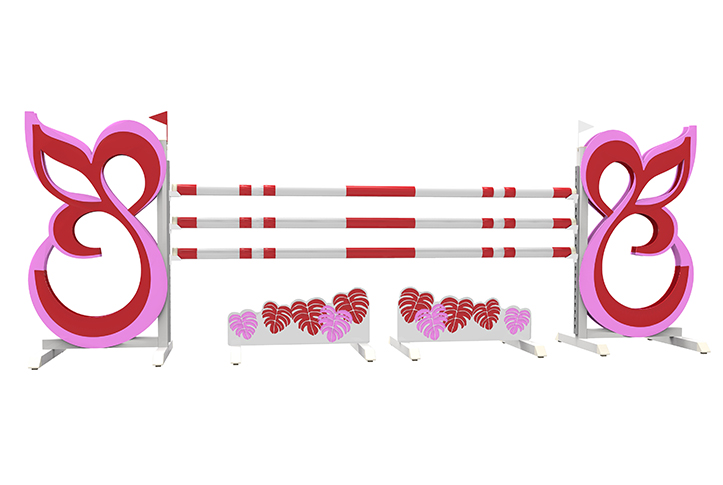

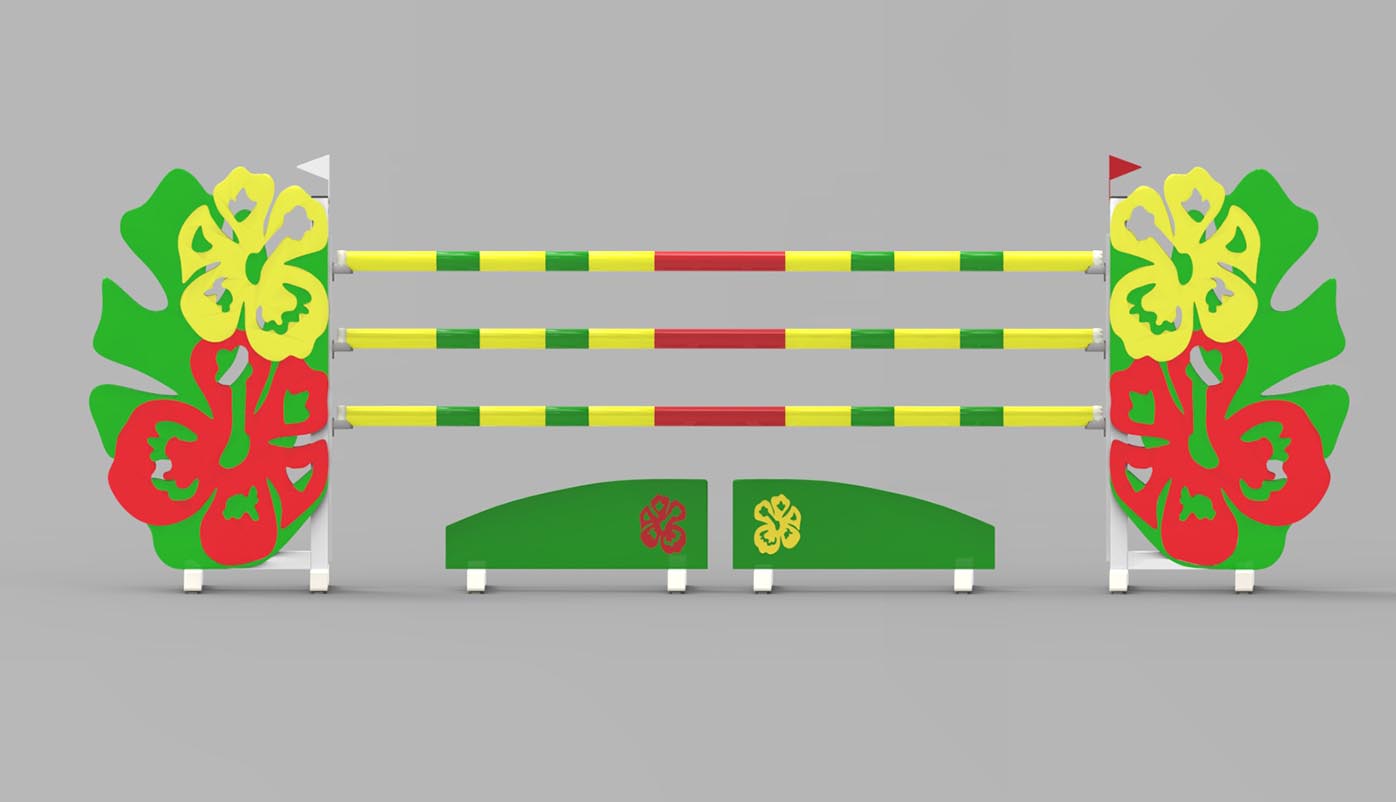

3D Modeling & Simulation
We create 3D virtual models to visualize the structure and design integrity of each obstacle. These models help us evaluate both aesthetic appeal and functional safety. Collision simulations are used to detect and eliminate any potential safety risks for horses or riders.
3D Carving & Precision Fabrication
Once finalized, the data is fed into advanced 3D carving machines to cut and sculpt each obstacle to exact specifications. Automated robotic arms then apply 360-degree spray painting, ensuring a smooth, durable, and visually striking finish.
Numeber： | V8505103 |
Materials: | Frame: Welded aluminum alloy tubes, 3.15 in × 3.15 in (80 mm × 80 mm) Obstacle Panels: Waterproof plywood, 0.71 in (18 mm) thick |
Pole Styles & Sizes: | 3.54 in (90 mm), 3.74 in (95 mm), 3.94 in (100 mm) Length options: 9.84 ft (3 m), 11.81 ft (3.6 m), 13.12 ft (4 m) Custom colors and designs available to match event themes or branding. |
Plank Styles & Sizes: | Length options 9.84 ft (3 m), 11.81 ft (3.6 m), 13.12 ft (4 m) Available in various shapes and styles |
Fill Material Construction： | Base: Welded aluminum alloy tubes, 3.15 in × 3.15 in (80 mm × 80 mm) Panels: Waterproof plywood, 0.71 in (18 mm) thick |
Included Accessories： |
|
Flexible Accessory Configuration Guide
To meet diverse customer needs, we offer a wide range of functional and decorative accessories compatible with all our products. Some accessories require structural integration and must be specified at the time of order. Others can be ordered and installed at any time, allowing for flexible upgrades and customized enhancements.
| ||||
 |  |  | ||
Start-Finish Plate Dimensions: 23.62" × 31.50" (60 × 80 cm), or custom sizes available upon request. Materials:0.71" (18 mm) waterproof multilayer plywood. | Number Barrel Dimensions: 13.78" × 13.78" × 13.78" （35 x 35 x 35cm） Materials:PE | Number Barrel （BIG） Dimensions: 13.78" × 13.78" × 27.6" （35 x 35 x 70cm） Materials:PE | ||
|
|  | ||

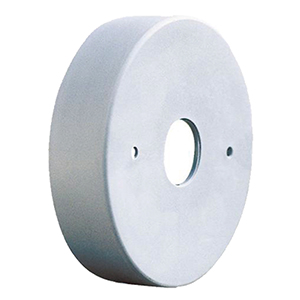

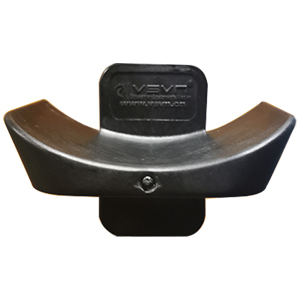

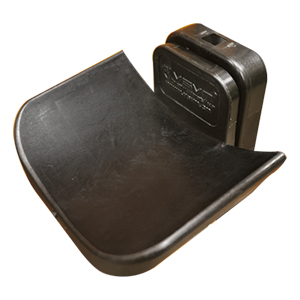

PVC Poles Cover Dimensions: 3.74 in 、3.94 in 、4.13 in (9.5cm、10cm、10.5 cm) Materials:PE | PVC Cup Dimensions: 0.59 in 、0.79 in、0.98 in 、1.18 in （1.5cm、2cm、2.5cm、3cm） Materials:: Nylon 66 | Safety Cup（Certified by the FEI） Dimensions: 0.59 in 、0.79 in、0.98 in 、1.18 in （1.5cm、2cm、2.5cm、3cm） Materials:Nylon 66 | ||
|
|
| ||

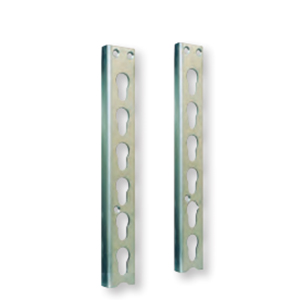

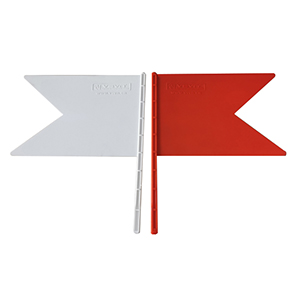

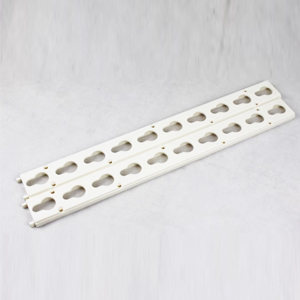

Safety Cup Hanger Dimensions: 59 in （150cm） Materials:Safety | PVC Cup Hanger Dimensions: 59 in （50 + 50 + 50cm） Materials:ABS | Red-White Flage（Stand） Dimensions: 10.2 in × 7.1 in（26 x 18 cm） Materials:Nylon | ||
 | ||||

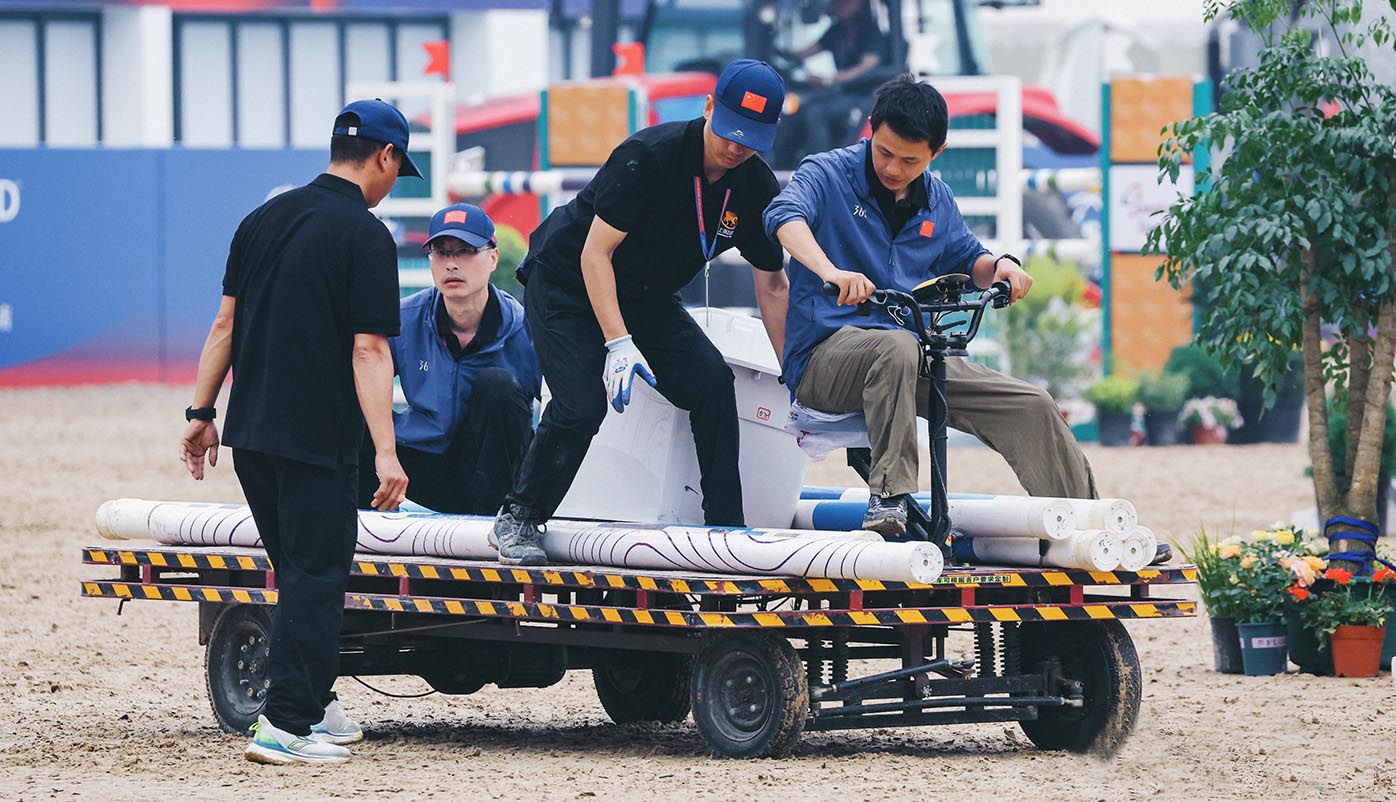

Electric Trailer for Obstacles Dimensions: 5 x 10 feet （1.5 x 3m） Materials:Safety Load Capacity: 3,300 lbs ( 2 metric tons) | ||||
 | ||||

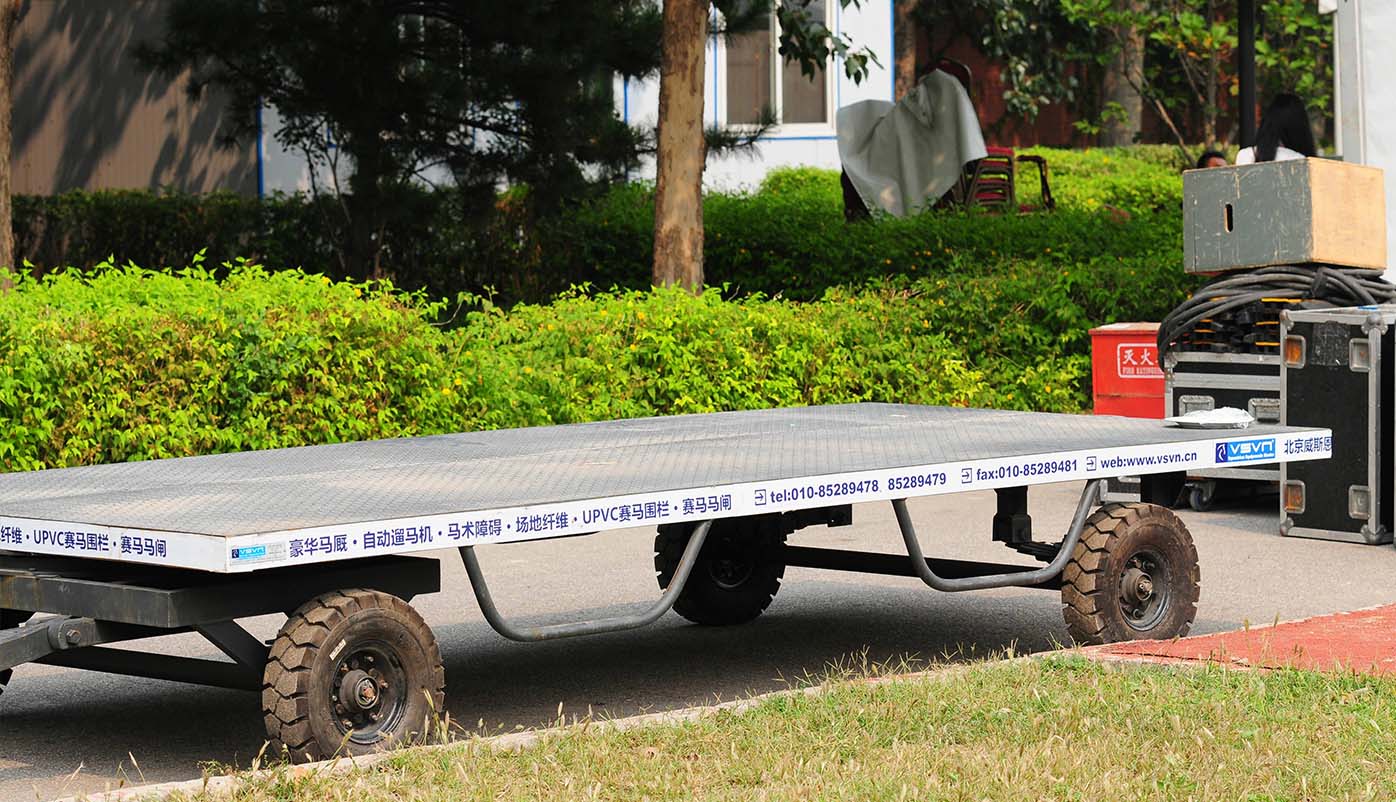

Trailer for Obstacles Dimensions: 4 x 8 feet （1.22 x 2.44m) ，6.5 x 13 feet （2 x 4m) Materials:Safety Load Capacity: 2,200–11,000 lbs (1–5 metric tons) | ||||
 | ||||

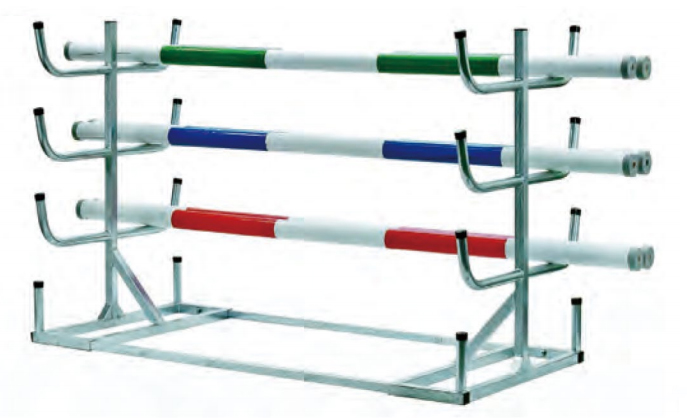

Jumps Poles Hangers Dimensions: Materials:Safety | ||||
